Ultra Slim Square LED Ceiling Panel Light 18W,200x200mm

2)Voltage:AC85~265V,200x200mm size,11mm ultra thin thickness

3) High CRI, original Lumenmax 3014SMD
4)Warranty:2 years,
easy installation, energy saving

5) No electric wave.RGB,Remote-control dimming are available

Energy-efficient, environment-friendly, save up to 50%, high intensity
Maintenance free,easy installation
3years lifespan,UL/cUL listed driver is available
Special different view angle,mixing lighting design
Instant start,no flickering,no humming
New inner high efficiency(95%) with heat protection system, the
constant current driver can work under unstable voltage
Special circuit design,each LED can work separateky,thus it can avoid
The influnence that a broken LED causes.
No electric wave.Remote-control dimming available.
No such hazard that mercury or lead enters the enviorment.

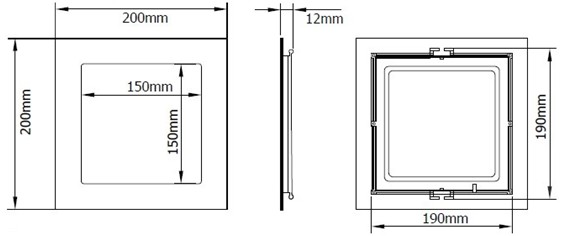

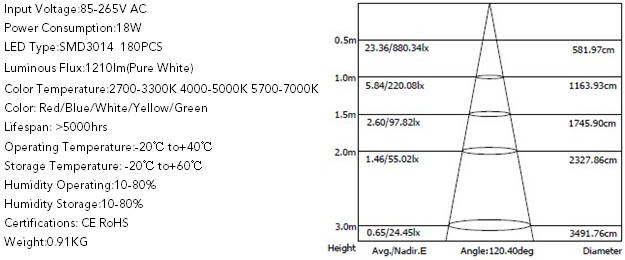

Technical Specification:

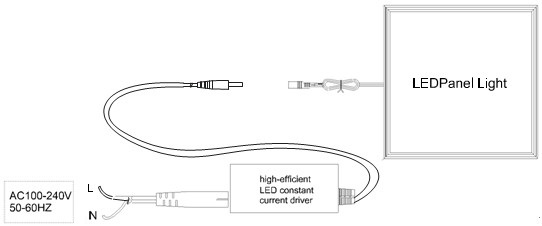

Electrical Connection:

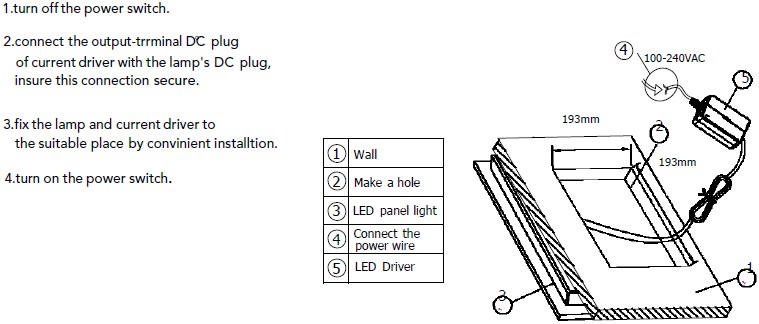

Installation Instruction:

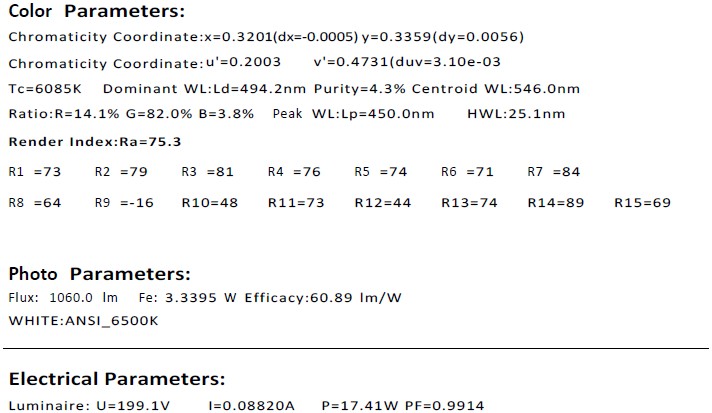

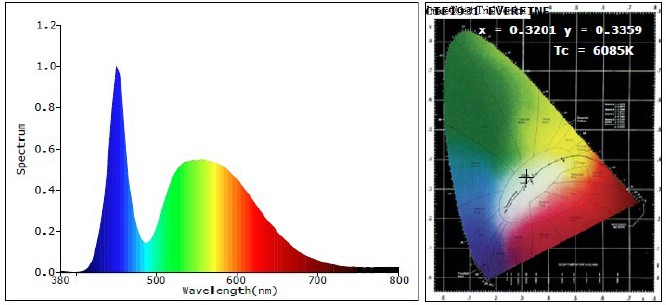

Spectroradiometric Parameters:

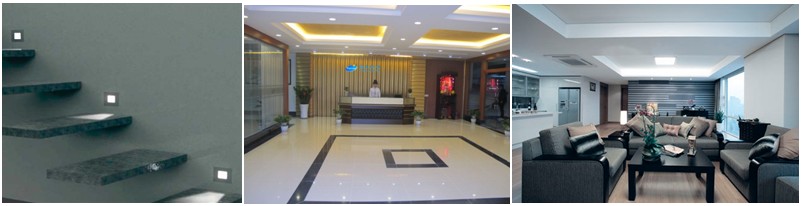

Shopping malls, store, supermarket; commercial lighting, hotel, restaurant, bank; office, meeting room, multifunction hall, exhibition hall; house, living room lighting, kitchen lighting, residential and institution Buildings.
