Home > Product > LED High Bay Light > ETL DLC UFO LED High Bay Light 100W 150W 200W

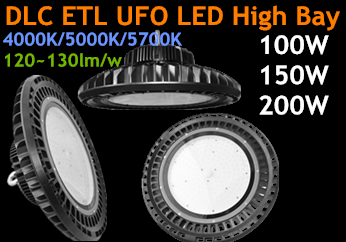

ETL DLC UFO LED High Bay Light 100W 150W 200W
1.60W 80W 100W 150W 200W 240W are available
2.ETL DLC listing UFO high bay led
3.120~130lm/w,high efficiency
4.high quality,5years warranty
5.4000K 5000K 5700K are listing
More UFO led high bay details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com

ETL DLC UFO LED High Bay Light 100W 150W 200W 4000K/5000K/5700K

IP65 UFO led high bay light with motion sensor,led high bay lighting retrofit,high bay lighting fixtures on alibaba in spanish

led-high-bay-light

120lm/w 200w led industrial high bay lighting parameter:

RL-UHBA-200W,UFO 200W  UFO LED High Bay Light Main Technical Parameters

Input Voltage

AC90V~305V

 Frequency Range

50Hz ~ 60Hz

Total Harmonic Distortion

≤12%

Power Factor

>0.96

Power Efficiency

>92.5%

Working Voltage

DC30~36V

LED Brand

3030SMD

LED Consumption

180 W

System Consumption

200 W

Led Luminous Efficiency

120LM/W

 Led Initial Flux

WW

23000lm

NW

24000lm

PW

25000lm

Lamp's Efficiency

>80%

Illumination Uniformity

>0.5

Color Temperature

WW

2800~3200K

NW

4000~4500K

PW

6000~6500K

 Color Rendering Index

PW

Ra>80





Light Distribution

Symmetrical / Round Spot

Light Design

LED+ Reflector secondary light distribution

Junction Temperature

<40

Working Temperature

–35~ +50

Storage Temperature

–25~ +65(25 best)

IP Grade

IP65

Working Life-span

50000hrs

Power line

1.0mm2 Three core Wire

Connect wire

Brown

L Live Wire

Blue

N Null Wire

Yellow/Green

G Ground Wire

NW

6.1kg/pc

GW

7.5kg/pc

DLC 150w led high bay light features:
1. UFO led high bay retrofit has 60w 80w 100w 150w 200w 240w for your optional to meet your defferent demands.

2.Industrial lifting hooks is ideal installation for warehouse, workshop, supermarket, gas station and parking lot lighting.

3. UFO high bay led 150w used original  PHILIPS 3030SMD,steady quality, and high lumens output.

4. Lifespan as long as 50,000 hours.

5. The 60w 80w 100w 150w 200w high bay led can perfectly replace 100w, 200w, 250w, 400w sodium lamp,mercury vapour lamp, metal halide light.

6. DLC highbay light with housing aluminum is high energy saving, save you energy up to 85% than halogen lamp.

Offer 60w/80w/100w/150w/200w/240w with high output >120LM/W LED High Bay Light.



*100w UFO LED High Bay / Low Bay Light, 200W HPS/MH Replacement



*120w UFO LED High Bay / Low Bay Light, 250W HPS/MH Replacement



*150w UFO LED High Bay / Low Bay Light, 300W HPS/MH Replacement



*200w UFO LED High Bay / Low Bay Light, 400W HPS/MH Replacement



Suitable for new builds or point-for-point replacement of HID, HPS, metal halide.



Reducing energy consumption by over 50%.



As LED industrial light includes: LED High Bay Light, LED Corn light,LED Flood light, LED Street Light

new-high-bay
ETL UFO 150w led high bay dimensions:

dimension-100w-150w-200w

120lm/w DLC led hangar high bay lighting details view:
new-ufo-led-high-bay-light-instructure

ufo-led-high-bay-fixture
120deg glass cover or 60/90deg lens refletcor type to choose:
glass-cover-lens-reflector-ufo-led-high-bay

high-bay-light
5700K 100w IES testing light lux intensity diagram:

lux-diagram-100w-ufo-led-high-bay
IP65 microwave sensor for led high bay for warehousing,factory:
ip65-microwave-sensor-for-ufo-led-high-bay-light-warehouse-using

UFO led industrial high bay lighting installation:

12led-high-bay-installation

Round UFO led high bay lights package:
packing
packing-ufo-led-high-bay

130lm/w led hangar high bay lighting application:

DLC 100w led high bay light is widely used in warehouse, factory, work shop, gas station, subway station, parking lot, supermarket, and other public place.
application-led-high-bay-light-fixture

FAQ

1. Are you factory supplier?

    Yes, we have our own factory, so we could offer this ufo led high bay lighting retrofit with competitive prices!

2. What special service can you offer?

     We can offer you the OEM and ODM service with favorable prices, and mark your brand and logo on the package!

3. How long will it take for my order to be shipped?

    Usually, for sample order, it takes 5-7 days, and for big quantity order, usually take 10-15 days!

4. What's your after sale service?

    We offer 3 years warranty for DLC led industrial high bay lighting ,during the warranty, if the lamps fail to work, proved not cause by human being, we would offer you the free lamp parts or new lamps!

More ETL DLC led high bay lighting fixtures you need, pls contact me:  Skype:tyjeffery

Website:  www.rayoulighting.com  www.rayoulighting.en.alibaba.com
