Home > Product > Landscape Lighting Projectors Outdoor > Christmas LED Projector Lights,outdoor Spotlights Landscape Lighting,12v 24v led garden light 12w ip65

IP65 Waterproof LED Spot Light,projector christmas waterproof garden lighting
1.3W 6W 9W 12W 18W are available for LED Landscape Projector Light
2.LED Garden Light 12V 24V 3W 6W
3.Spotlights Landscape Lighting by Epistar,Epileds,Bridgelux High Power LED chip
4.CE RoHS approved,2years warranty
5.RGB and Single color are avialable for Christmas LED Projector Lights
More Spot Lights LED Outdoor Lighting details,pls contact me:
Skype: tyjeffery,
Whatsapp: +8615817420912

What color light is best for outdoors?
For lighting with a very warm color temperature: 2700K LED is ideal, and 3000K is okay, too. The 2700K temperature offers a very soothing and natural tone that mimics the warm, comforting glow of a campfire. As such, it is ideal for creating relaxing, comfortable outdoor environments.

What led wattage do I need for outdoor lighting?
The recommended LED lumens for specific outdoor lighting: Step lights: 12-100 lumens. Hardscape lights (on walls): 50-185 lumens. Landscape lights: 50-300 lumens.

Where should outdoor landscape lights be placed?
Landscape lighting placement varies depending on the techniques utilized.
Highlighting – at the base of an outdoor feature.
Silhouetting – behind the feature, towards a close wall.
Shadowing – at the base of feature towards a wall.
Washing – a few feet away at an indirect angle to a wall or shrubs.

How far apart should you place landscape lights?
Six to Eight Feet
As a Rule of Thumb, Space Lights Every Six to Eight Feet
As a general rule, plan on placing lights six to eight feet apart to keep your pathway bright and well-lit. But don't be afraid to space them even closer, especially if you want a particularly vivid effect.

LED Landscape Projector Light Features:
led outdoor spotlight bulb productsConsisted of 3pcs or 6pcs or 9pcs  brand 1W or 3w high power LED;
2.Low Voltage Lights Outdoor Patented packaging technology and heat dissipation design ensure the heat disperses quickly;
3.Christmas Light Projectors & Spotlights with RGB and single color,Luminous flux is up to 100lm/W,Over 35,000 hours lifespan;
4.RGB Spotlights Spot Lights controlled by DMX controller, which can reach flowing changing, chase changing, flash changing and so on;
5.Spotlights Landscape Lighting working in 24V DC, smart constant current control circuit to eliminate flicker and ripple, spot smooth natural light.
6.Garden LED Projector Lights Outdoor with Remote by Aluminum alloy body and tempered glass material
7.IP65 LED Spot Lights beam angle is 15/25/30/45/60/90°,available in any projection direction, projection distance is more than 10 meters;

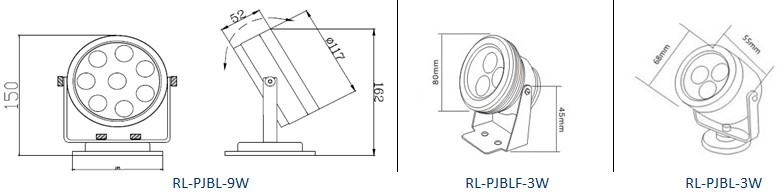

IP65 Waterproof LED Spot Light Dimensions:

LED Lawn Lamp Spot Light IP65 for Garden Parameters:

Model No

RL-PJBL-9W Outdoor led spotlight


Working Voltage






LED Quantity

9 1W/pc


Light Color

white         warm white


Color Temperature

3000-3500       6000-6500



720±10%        810±10%


Beam Angle

15   /  30  /  45  /  60


Housing Materials

High Strength Aluminum +Tempered Glass


Protection Degree



Installation Way

3*Ø6 Screws


Ambient Temperature




117mm*50mm162mm and holder





Net weight



Dimmable LED Spike Spot Light Outdoor Spotlight Landscape Garden Yard instructions:


Waterproof Connector

Power Supply Cables

2*0.75mm²;  GrownVCC;  Blue GND

Signal Cables

3*0.3mm^2;  Black GND ;  RedSignal A; GreenSignal B

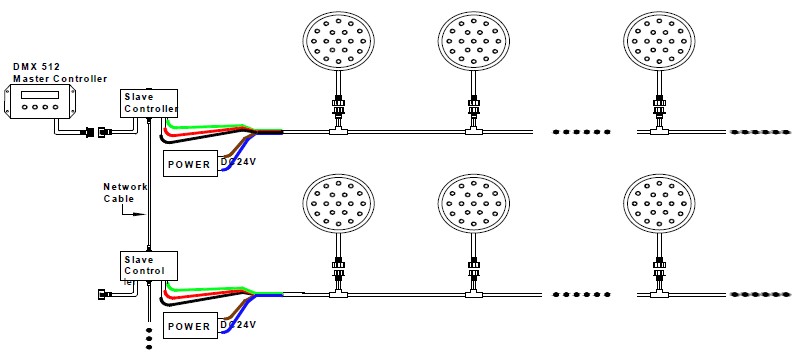

DMX512 Controller Connection Way of LED Halloween Xmas Projector Lights:

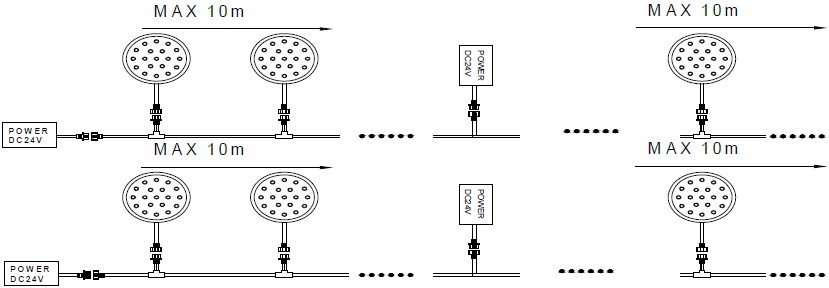

Controlled Inside and Single Color Connection Way of RGB Warm White Outdoor Landscape Lamp:

1.Power supply rated power should be at least 30% larger than load power.
2.Please do not  connect with city electricity to avoid damaging the driver, electronic components and LEDs.
3.Please do not mistake the power supply cables with signal cables.
4.Attention not to heavily press on the lights.
5.Please take care when carry the lights.
6.Please do not twist the light willfully.
Safety Instructions:
1.Please keep away form mines, strong magnetic field and high voltage area when installation
2.Make sure correct and fixes connection way in order to avoid damaging electronic components and fire accidents..
3.Please put the controllers on the ventilated place to ensure appreciate ambient temperatures..
4.Prohibit charged d
ecorative Lighting Projectors Outdoor wiring, make sure the connection are correct first of all.
5.When Christmas Light Projectors & Spotlights any problems and questions happens, contact us first please do not repair them privately.

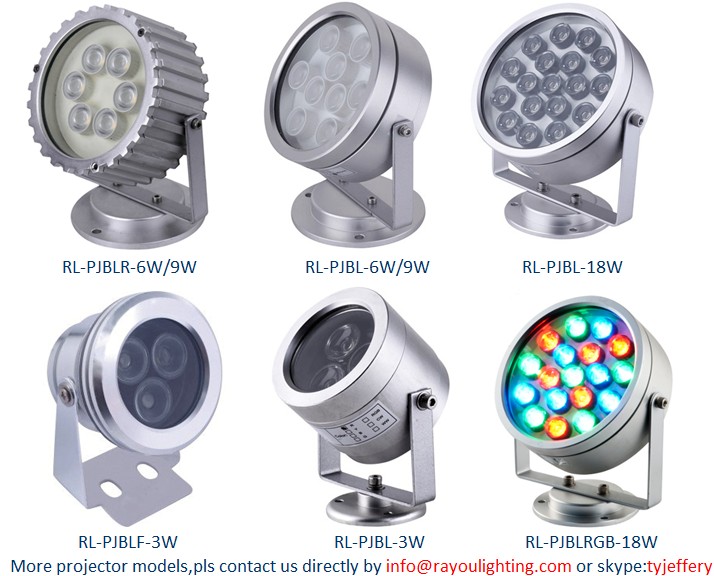

More Outdoor garden lights available:

After-sale service:
We guarantee Spotlights Landscape Lighting two year warranty since you receive the products. During the first year when any quality problems appear under correct operations and normal conditions, we are obligated to offer free repair and replacements.
But when Cheap projector led operated not under instructions or normal conditions, we shall charge the maintenance and replacement costs.
The incorrect operations and natural disasters for
LED Spot Lights IP65 IP Rating Fixtures are as bellow:
1.Using improper power supply or exceed voltage.
2.Privately remove, repair, replacing electronic components.
3.During transportation after receiving, shaking, falling, and oozing with water leads damage.
4.Damage on earthquake, fire, flood, lightning natural disasters, environmental pollution caused by light.
5.Stored in high humidity environments, from harmful chemicals as inappropriate near the maintenance of damage.

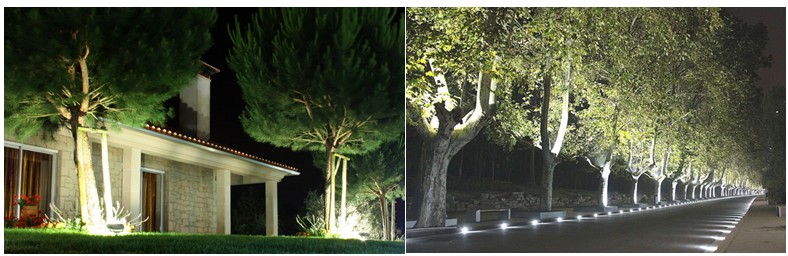

Outdoor Led Projector Lights used for square and civilization plazas decoration;

2020 Outdoor LED Projector Laser Lights Red+ Green + Blueused for Museum lighting,
Projectors Christmas Halloween Window Projector Led used for stage lighting and Exhibition hall lighting;
Garden LED Projector Lights Outdoor with Remoteused for Valley, restaurant, hotel, building façade lighting.
