Ultra Slim 10W 20W 30W 50W 100W 150W 200W Outdoor LED Flood Light
1.10W 20W 30W 50W 100W 150W 200W led flood light are available.
2.3030SMD,or high lumen 2835SMD
3.>105~115lm/w,high efficiency
4.high quality,3years warranty
More smd led light flood details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com



Slim SMD led flood light features:

1.New slim SMD led flood light using imported super bright philips 3030SMD light source, High brightness, long life.

2. By using new aircraft aluminum material flood light heatsink,whole SMD flood light good at heat dissipation.

3. Waterproof design with a new structure, Protection rate: IP65.

4. 4mm tempered glass panel to protect the lighting source, the transparent rate up to 93%.

5. the entire housing coated by electrophoretic pati, excellent corrosion resistance.

6. Multi design to choose,horizontal or vertical holder design are available.

new design outdoor led flood light specification:

Model

Power

CCT

Voltage

Luminous Flux(lm)

Fixture Size

LXBXH(mm)

Net Weight(kg)

Carton Size(cm)

RL-SSWFL-10W

10W

3000K

4000K

6000K

85~265VAC

950

126x125x40

0.43

28X29.5x29,20pcs

RL-SSWFL-20W

20W

1900

176x165x38

0.72

37x35x29.5,20pcs

RL-SSWFL-30W

30W

2800

180x154x40

0.86

40x32x19.4,12pcs

RL-SSWFL-50W

50W

4800

227x190x40

1.60

49.4x32x22,10pcs

RL-SSWFL-100W

100W

9500

310x268x44.5

2.95

29.3x29.8x34,6pcs

RL-SSWFL-150W

150W

14000

378X310X47.5

3.6

44.5x34.8x37.5,4pcs

RL-SSWFL-200W

200W

  19000  444X333X50          4.9     50.5x34.8x40,4pcs

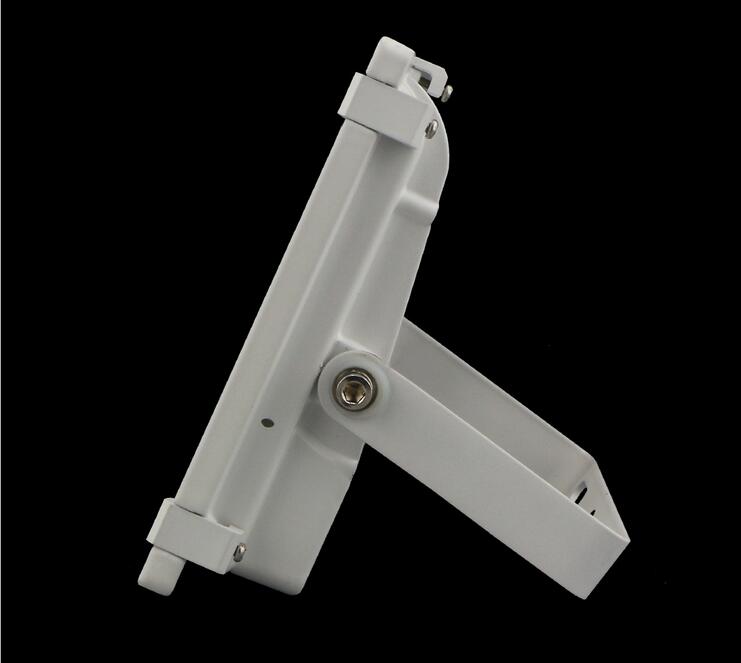

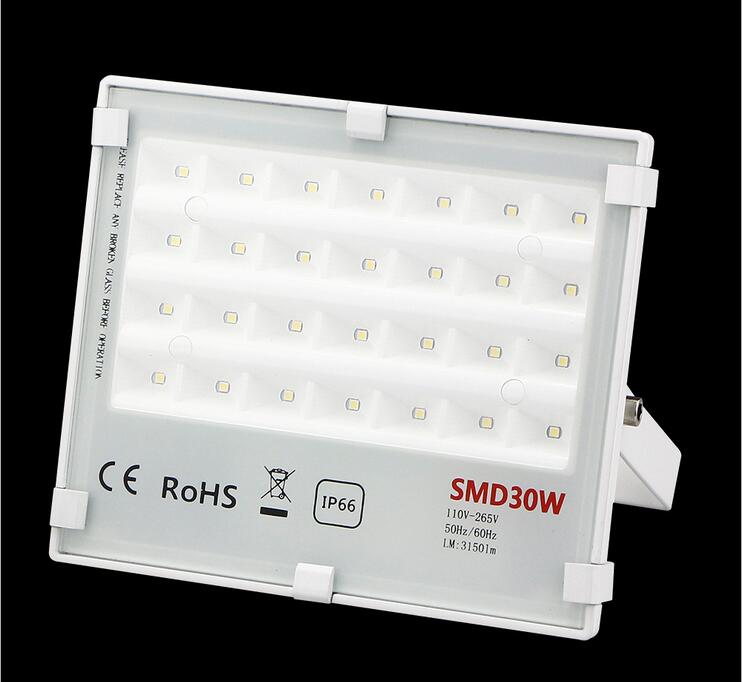

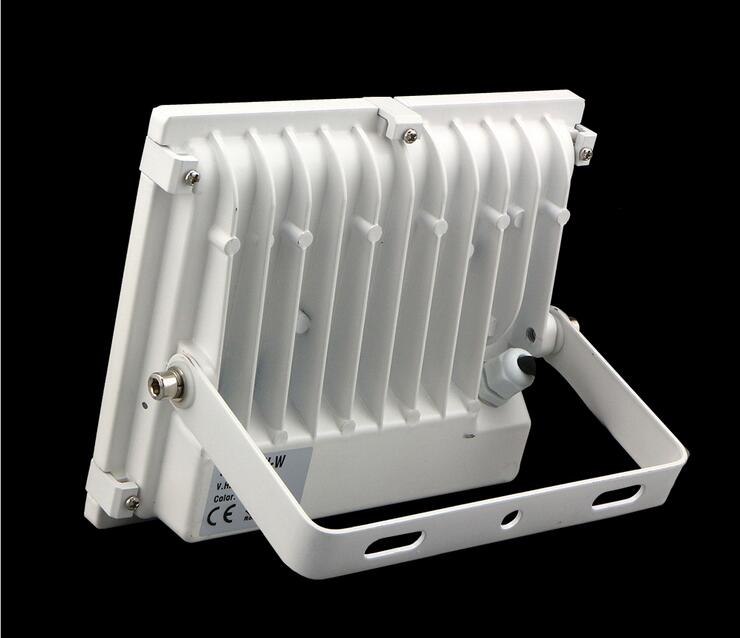

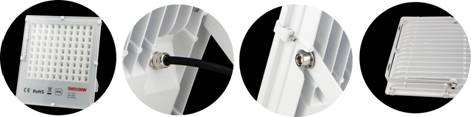

      ip66 led flood light details view:

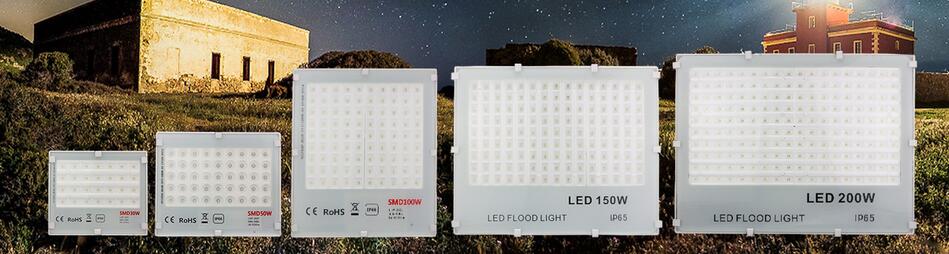

ultra slim 10w 20w 30w 50w outdoor led flood light more photos:

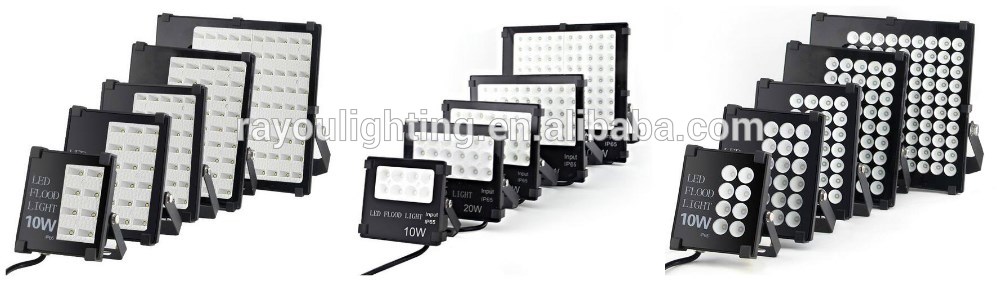

smd led floodligt different types to choose:

Factory overview:

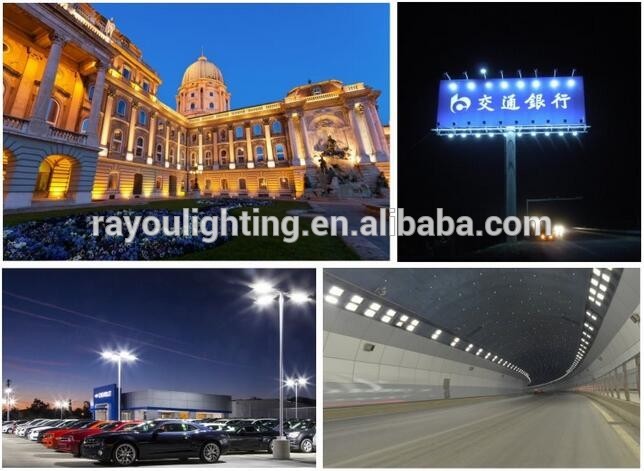

200w smd led flood light application:
200w smd led flood light is widely used for replacing traditional metal halide floodlight 400w,it can instant start and has long lifespan,
low consumption,and pollution freely,can be widely used for stadium,golf course,
wharf,square,playground,gas station,high way
checking point,mining area,exhibition building and so on.
