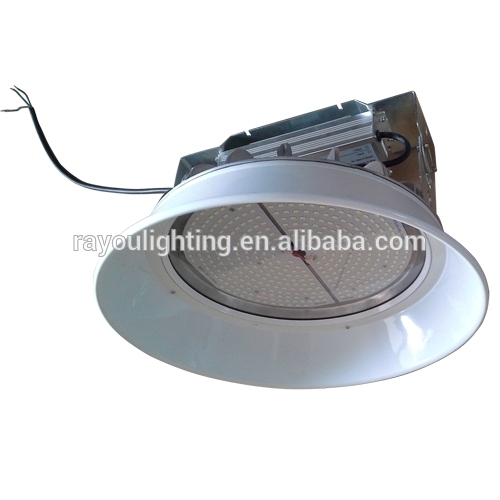

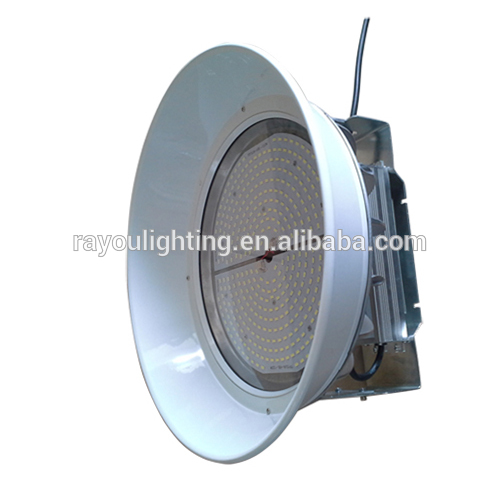

 SAMSUNG 5630SMD UFO LED High Bay Light
1.80W 100W 120W 150W 180W LED high bay are available
2.Original SAMSUNG 5630SMD,meanwell driver
3.>110lm/w,high efficiency,round design from korea
4.high quality,3years warranty
5.CE RoHS TUV SAAL UL listed
More high bay details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com

 led round high bay light 200w features:

1.UFO led high bay has 80w 100w 120w 150w 180w 200w for your optional to meet your defferent demands.

2.led high bay light fixture with 120 degree is ideal angle for warehouse, workshop, supermarket, gas station and parking lot lighting.

3. 150w led high bay light used SAMSUNG 5630SMD,steady quanlity, and high lumens output.

4. Lifespan as long as 50,000 hours.

5. The 80w 100w 150w 180w can perfectly replace 150w, 200w, 250w, 400w sodium lamp,mercury vapour lamp, metal halide light.

6. 400w led high bay light is high energy saving, save you energy up to 85% than halogen lamp.

150w round led high bay light specification:

PRODUCT SPECIFICATIONS

Product name:

150w led high bay light

Model No.:

RL-HBR-150W

Power:

150W

Working voltage:

AC90-305V, 50/60Hz

PF:

> 0.97

IP Grade:

IP65

TECHNICAL CHARACTERISTICS

Color:

Natural White

Color Temperature:

5000-5500K

CRI:

>80Ra

Light Efficiency:

110lm/w

View angle:

120°

CONFIGURATIONS

LED chip:

SAMSUNG 5630SMD from KOREA

LED driver:

Mean Well HLG-160H-48A

Heat sinks:

Aluminum

Body color:

Silver

OTHERS

Operating Temperature:

-30℃  to  50

Operating Humidity:

20%-90%  RH

Storage Temperature:

-30℃  to  60℃

Warranty:

5 Years

Certificates:

CE, RoHS,FCC,SAA,TUV,UL

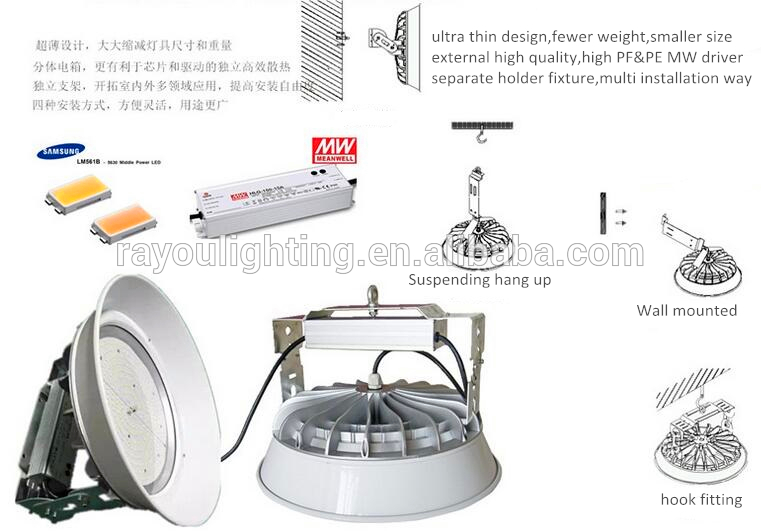

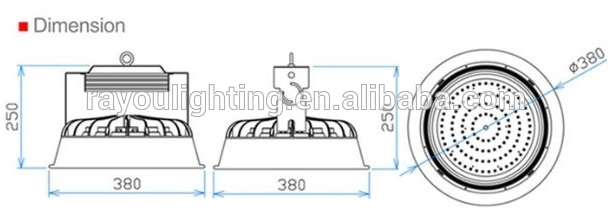

100W led high bay light dimension:

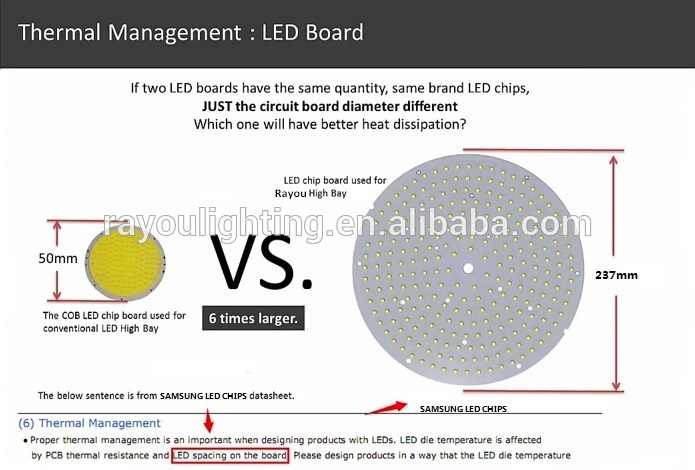

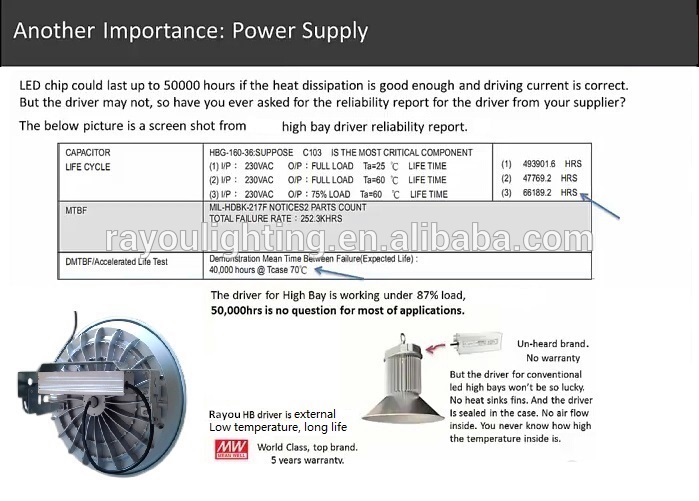

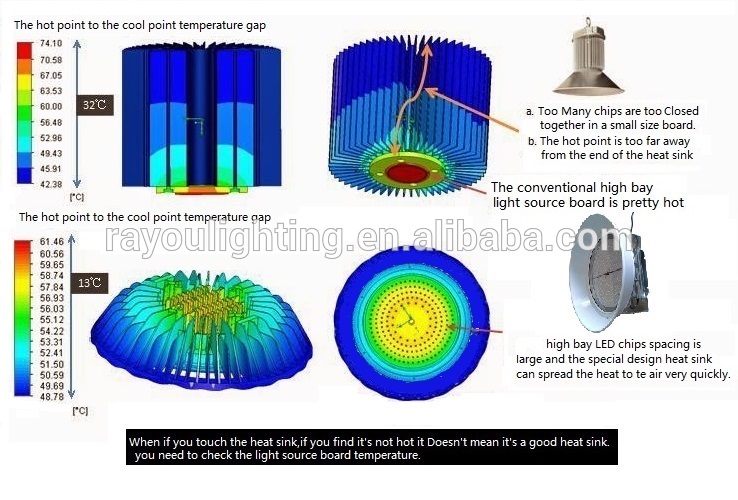

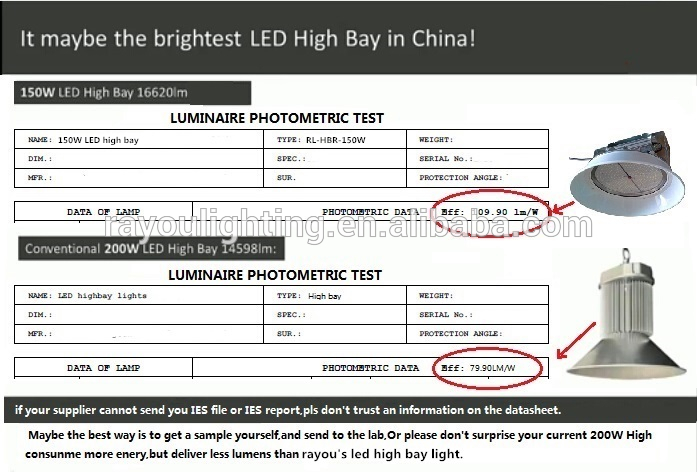

LED high bay light fixture comparison with other led high bay:

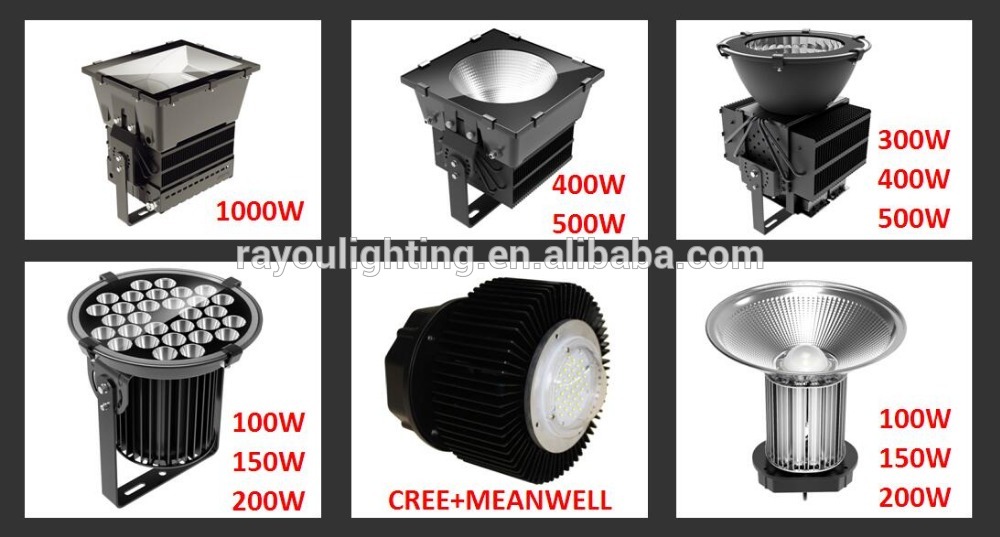

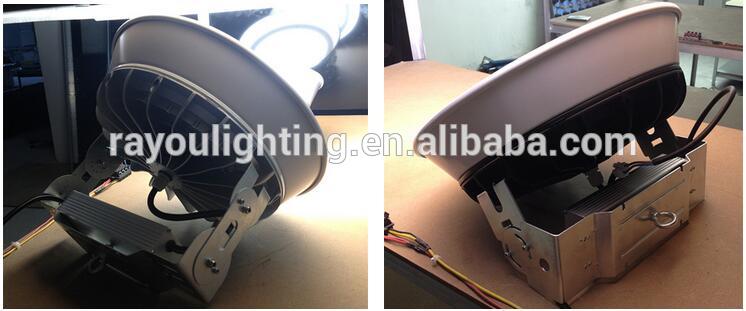

More similar high bay light housing models to choose:

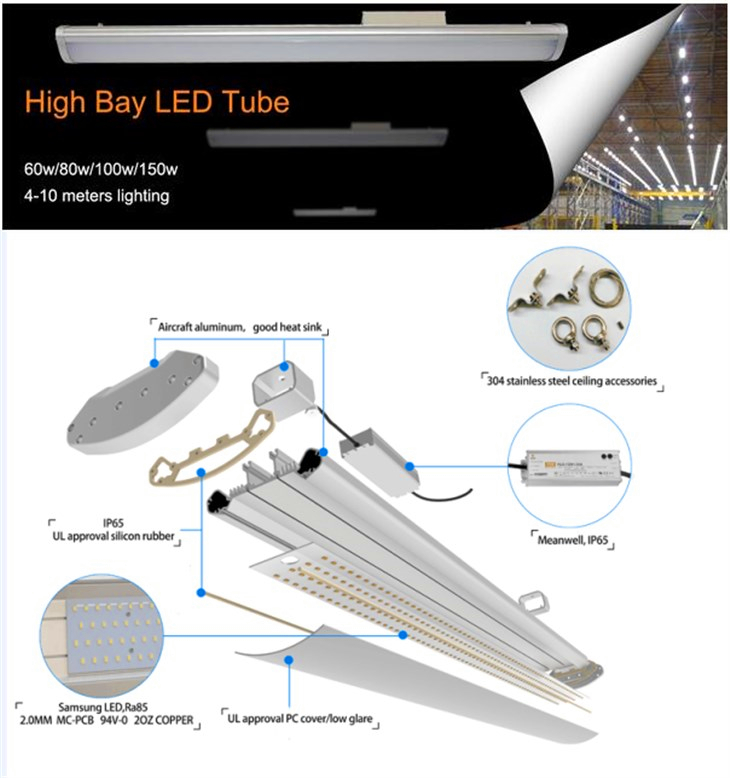

LED Linear high bay,led high bay tube is available:

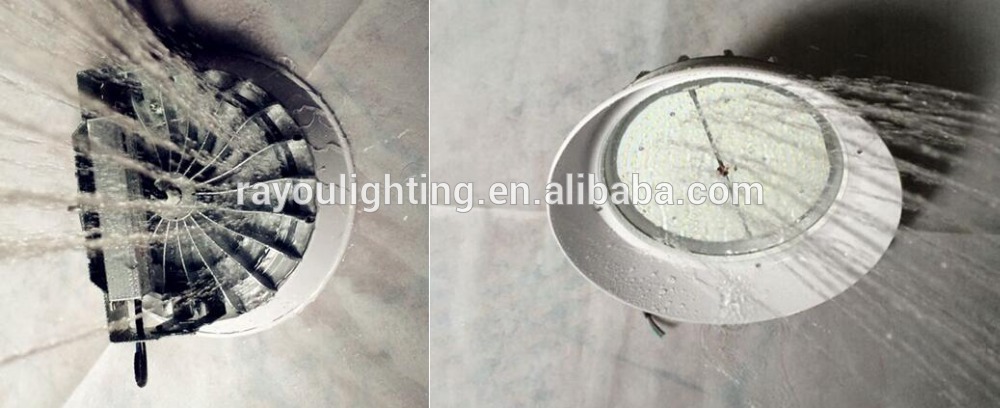

ul led high bay waterproof testing:

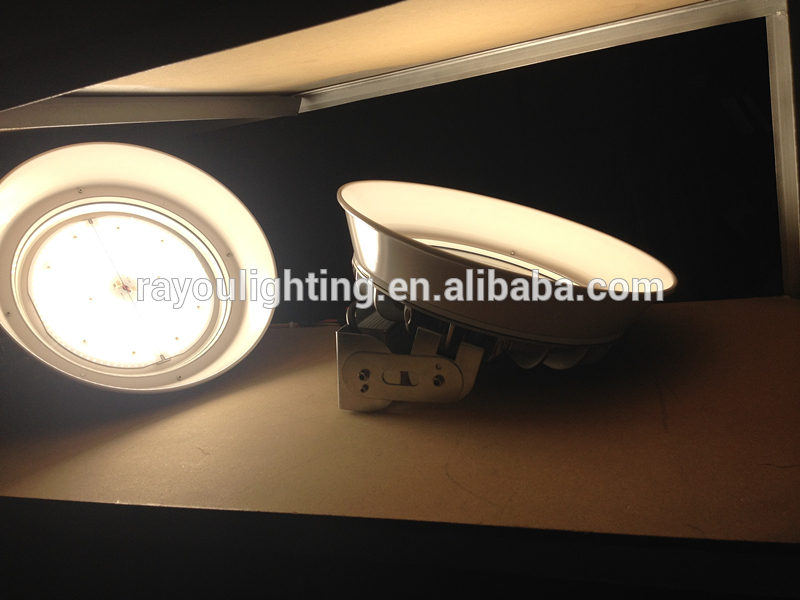

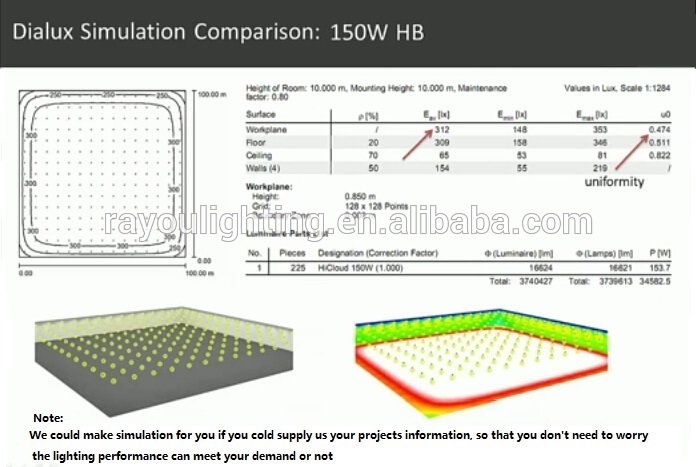

ufo led high bay light lighting effect:

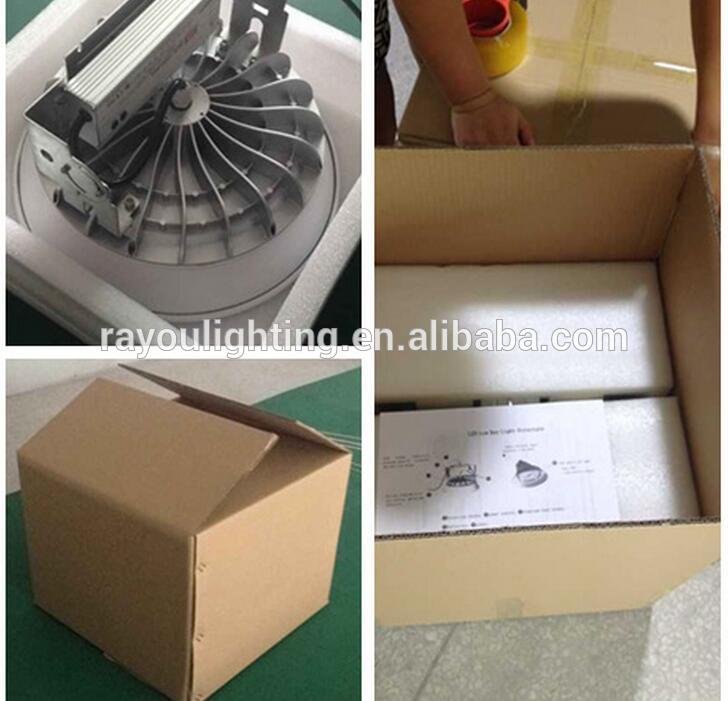

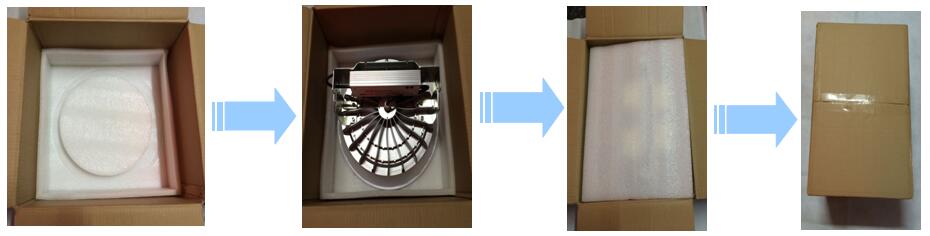

100w led high bay light packing:

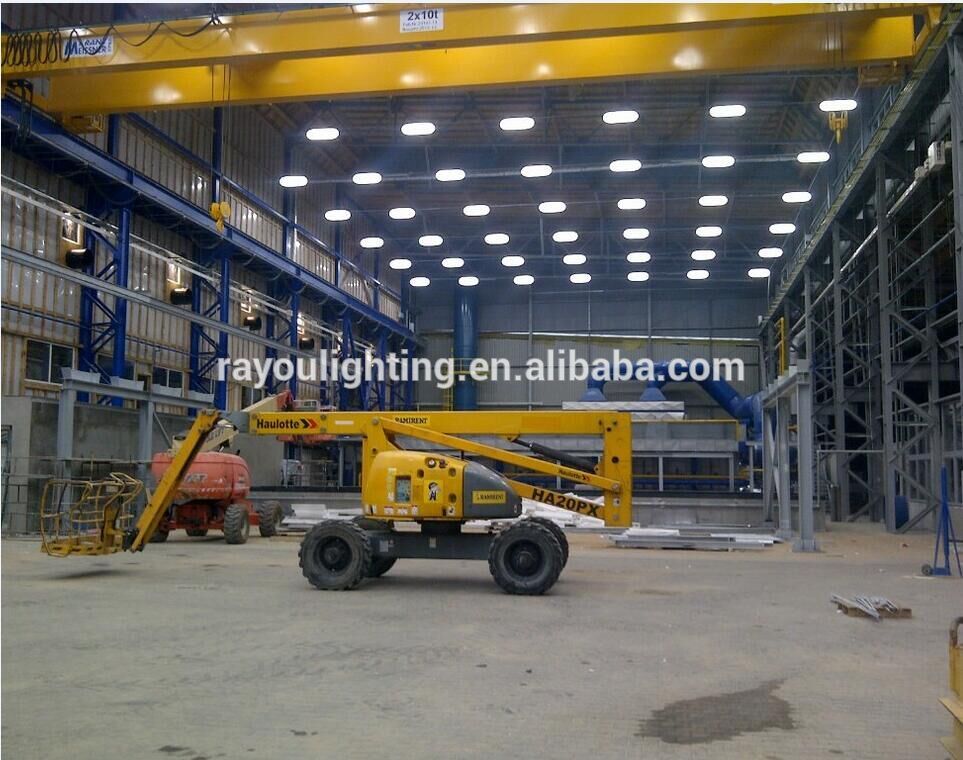

80W led high bay light application:
