DLC Magnetic LED Strip Lights,Intertek Magnetic LED Light Bar

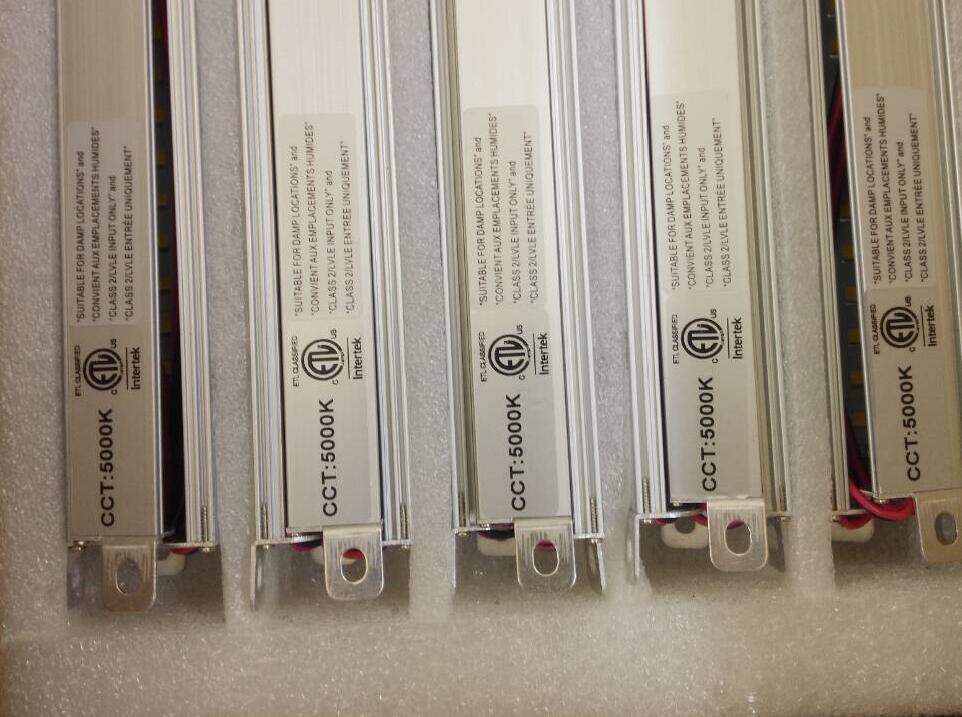

1>DLC magnetic strip led lights,ETL intertek magnetic led light strip
2>24W 30W 40W 45W 60W 80W 4ft for 2X4 troffer,
20W 30W 40W 2ft for 2x2 troffer fluorescent replace
3>125~130lm/w compatible DLC 4.0,1~10V dimmable is optional
4>Milky or transparent PC cover available
5>Magnetic adhesive,quick connect,fast install
6>100~277VAC UL driver,5years warranty
7> Special for fluorescent tub,troffer replace
More magnetic adhesive led strip details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com

China DLC intertek magnetic metal strip,magnetic led light bar,led strip retrofit for troffer fixtures replace,DLC Magnetic LED Strip Lights,Intertek Magnetic LED Light Bar

2x2 2x4 magnetic led strip lights electrical parameter:

Model

Description

Watts

Lumens&

Effeciency

Dimensions

RL-RTST1-24W

1.AC100-277V
2.LED:SMD2835 Bridgelux
3.Driver:UL Class II
4.CCT:3500K/4000K/4500K
/5000K
5.Lens:Clear/Frost
6.5Years Warranty

24W
1 ×Strip

125-135Lm/W
2500-2700Lm

4 Feet
( L44.5''×W0.71''H0.54'')

RL-RTST2-30W

30W 2×Strips

125-135Lm/W
3750-4050Lm

RL-RTST2-40W

40W 2×Strips

125-135Lm/W
5000-5400Lm

RL-RTST3-45W

45W 3×Strips

125-135Lm/W
5625-6075Lm

RL-RTST3-60W

60W 3×Strips

125-135Lm/W
7500-8100Lm

RL-RTST4-60W

60W 4×Strips

125-135Lm/W
7500-8100Lm

RL-RTST4-80W

80W 4×Strips

125-135Lm/W
10000-10800Lm

RL-RTST21-20W

20W
1 ×Strip

125-135Lm/W
2500-2700Lm

2 Feet
(L22.2''×W0.71''H0.54'')

RL-RTST22-30W

30W 2×Strips

125-135Lm/W
3750-4050Lm

RL-RTST23-40W

40W 3×Strips

125-135Lm/W
5000-5400Lm

Linear magnetic led light bar features:
LED Linear Troffer Retrofit Kits Strips are economic LED replacements for 1’x4’, 2'x2' and 2'x4' existing recessed troffers in drop-in ceilings. The kits are easily and quick field installed using simple hand tools with minimum modification to the existing housings.
1> Voltage:100-277V/50~60Hz.
2> Lumen Efficiency:125-130Lm/W DLC Luminaire.
3> Power Factor: > 0.95.
4> CCT:3000K/3500K/4000K/4500K/5000K.
5> CRI (Ra):80 nominal.
6> Mounting method: Magnetic led strips and driver, quick-connect,fast installation.
7> Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” or fluorescent tube style fixtures.
8> 1-10V dimmable, emergency back up version are available.

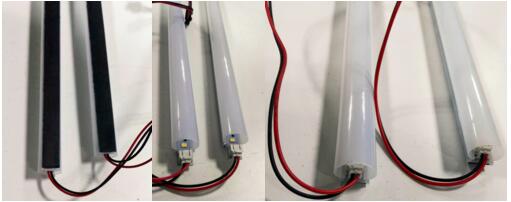

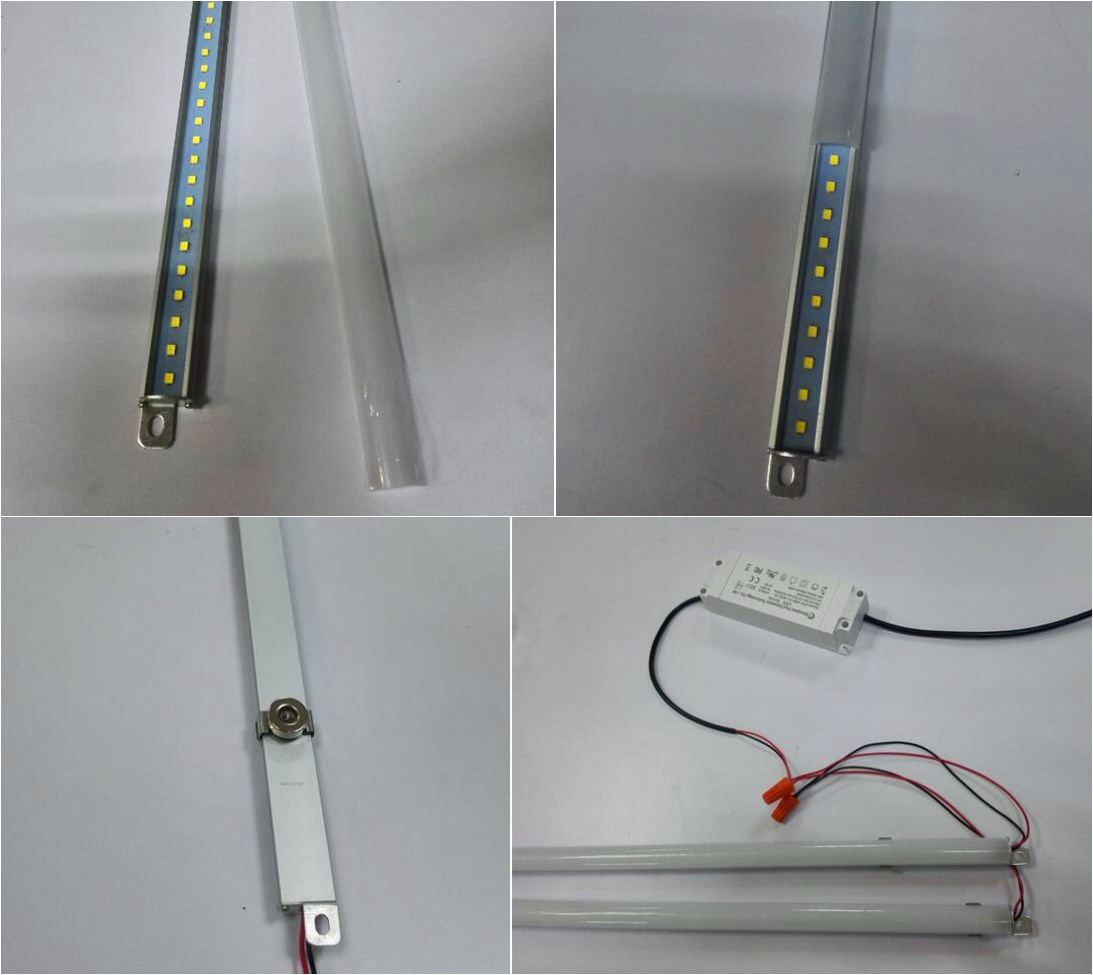

fluorescent led retrofit kits,with clear and frosted PC cover led magnetic cabinet light details view:

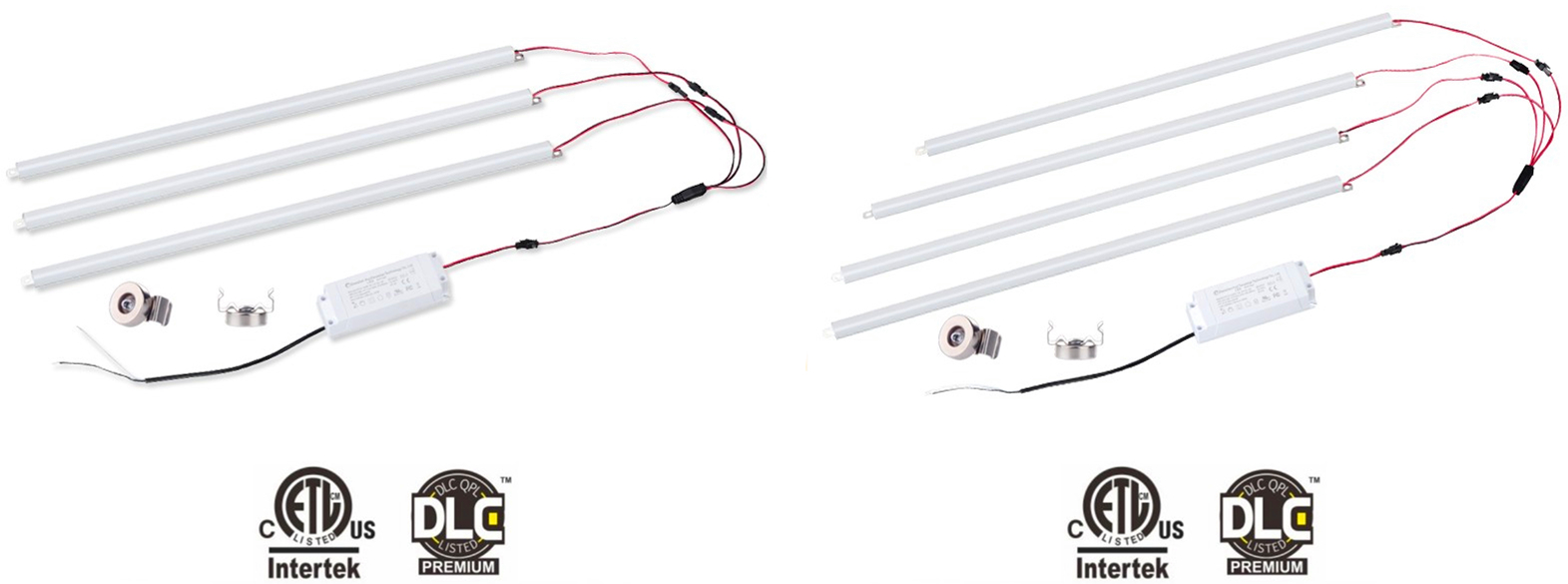

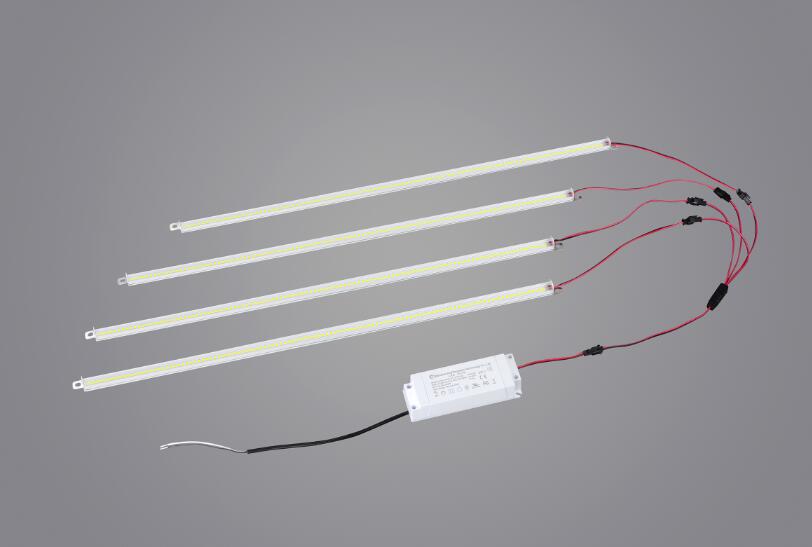

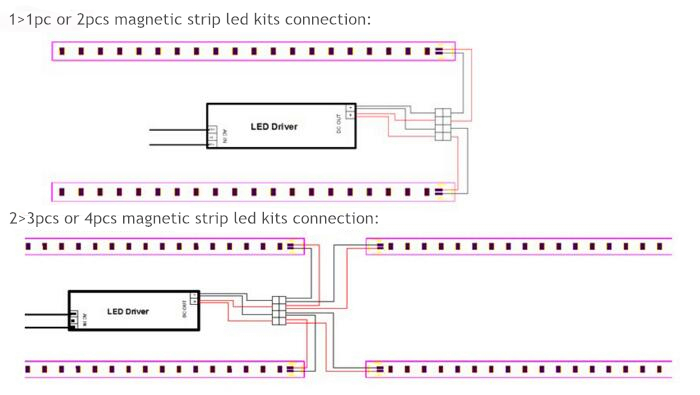

tranparent cover magnetic adhesive led strip wiring diagram:

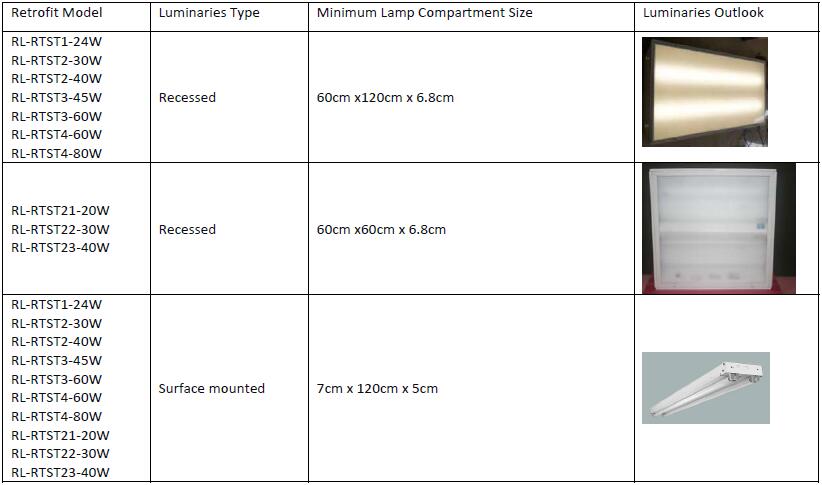

magnetic mount led light replacement recommendation:

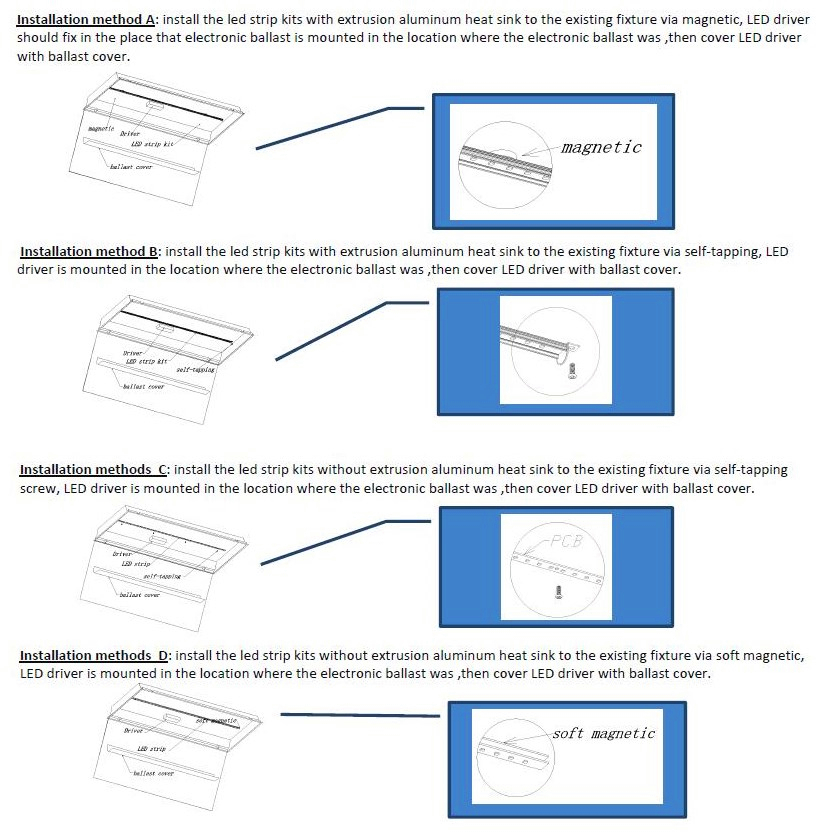

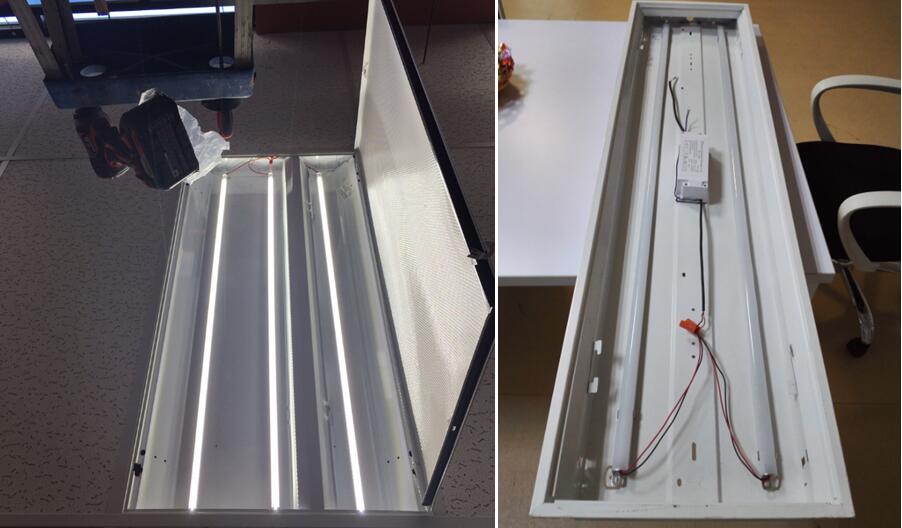

magnetic mount led strip light installation optional:

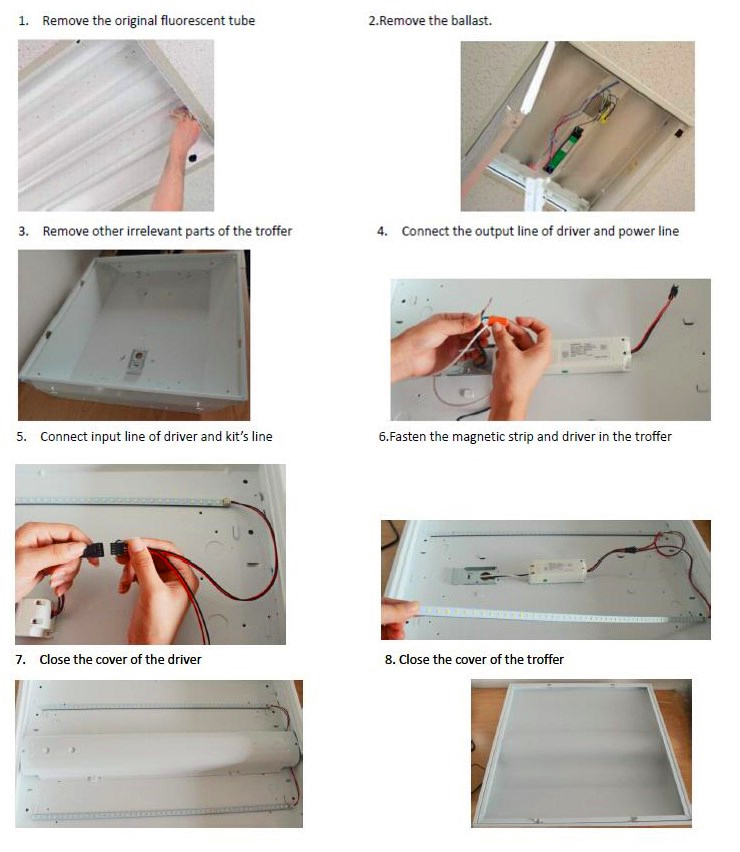

magnetic adhesive led strip installation instruction:

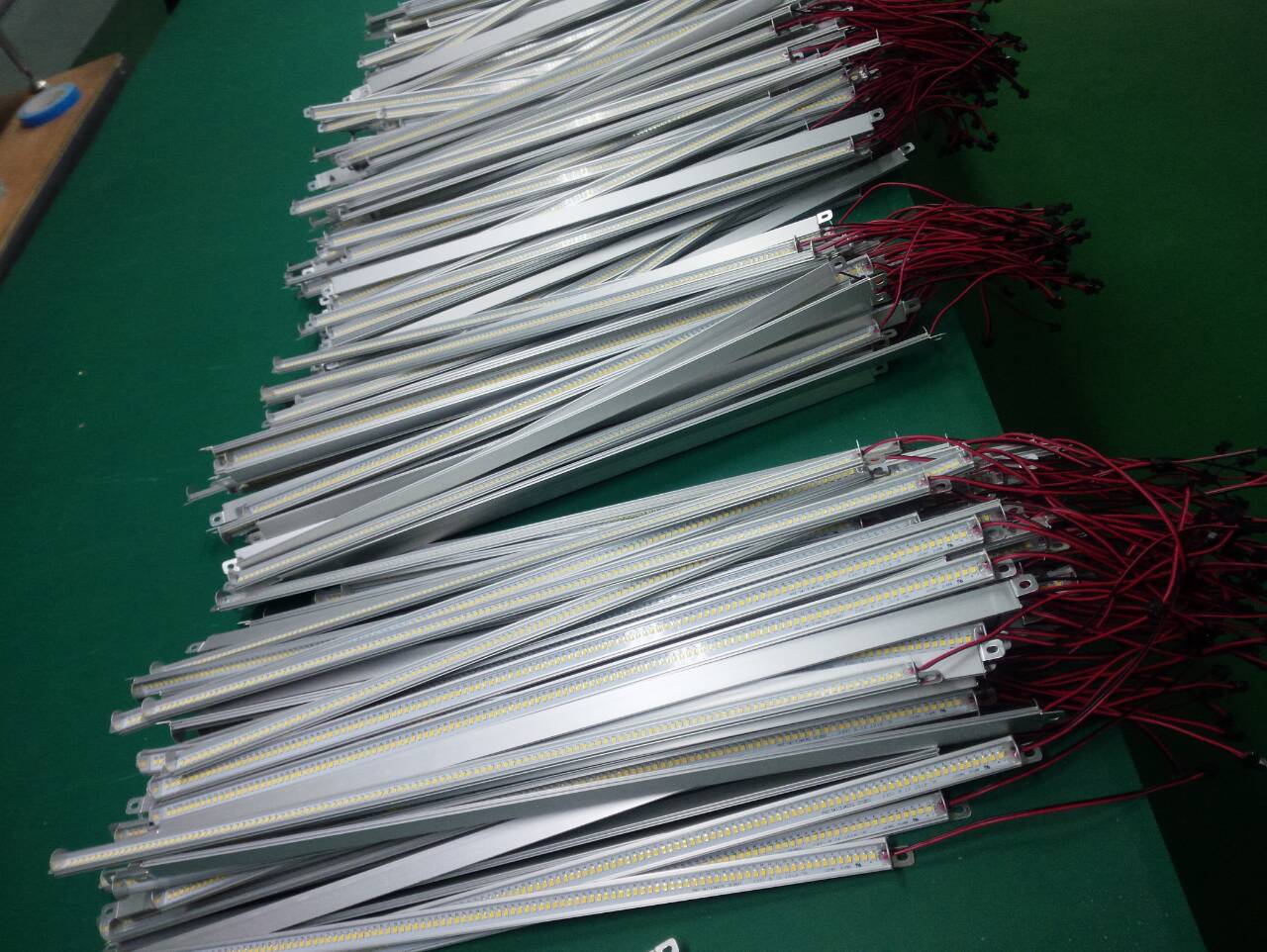

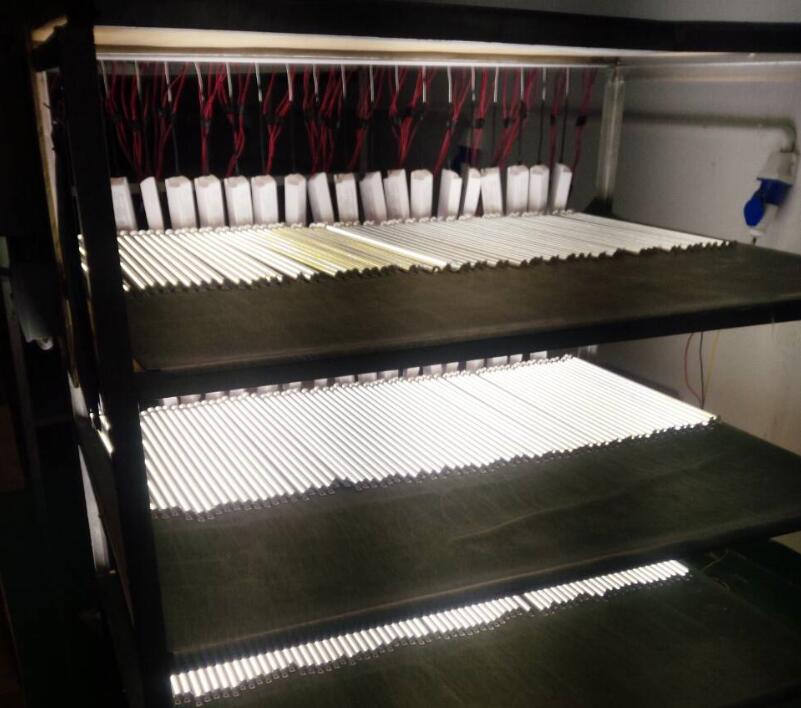

led strip aluminium heat sink massive produce:

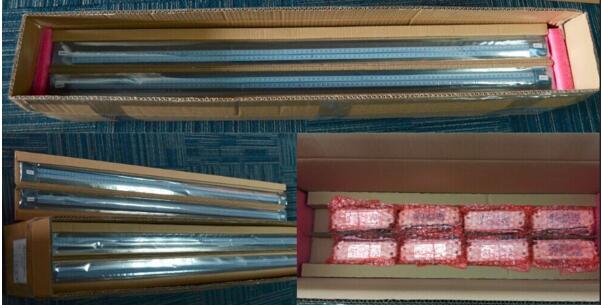

self adhesive led strip light packing:

linear magnetic led retrofit kits for fluorescent application:
magnetic led light bar used for canopies ,farmyards, parking garages,cold storage facilities,dust&wet location
environments.

RFQ:

1. Are you factory supplier?

    Yes, we have our own factory, so we could offer magnetic led light bar with competitive prices!

2. What special service can you offer?

     We can offer you the OEM and ODM service with favorable prices, and mark your brand and logo on the package!

3. How long will it take for my order to be shipped?

    Usually, for sample order, it takes 5-7 days, and for big quntity order, usually take 10-15 days!

4. What's your after sale service?

    We offer 5 years warranty for troffer led strip light bar, during the warranty, if the lamps fail to work, proved not cause by
human being, we would offer you the free lamp parts or new lamps!
