1.Energy saving up to 50% even lighting output.
2.Wide range of input voltage: AC 100~240V.
3.Instant start, no flicking, no humming.
4.New high efficiency constant current driver.
5.Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
6.No RF interference.

Feature:
LED type:
3528 SMD LEDs are available
Material: white or satin aluminum & PMMA;
power supply & installation accessories included
Thickness:14mm

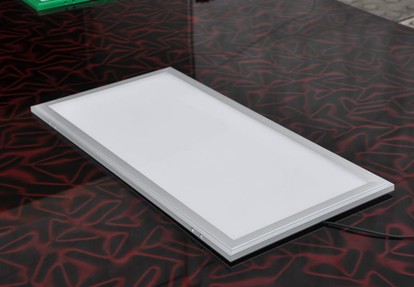

Size: 300X600X14mm

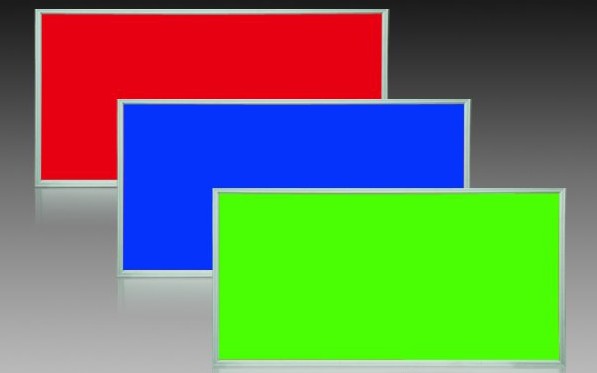

Color: Single color,RGB; (various colors available)
Input Voltage:AC100V~AC240V available
Power: Available 23W (3528 SMD LEDs led panel light ) and 24W(3528 Single Color SMD LEDs led light panel)
LED Q'ty: 372pcs 3528SMD type and 120pcs 3528SMD single color available
Flux: 1150-1500lm
Color temperature: 2700K-7000K( Optional, according to your requirement )
Working Temperature: -20 - +50
Storage Temperature: -30 - +60

Lifetime: ≥50,000h
Beam angle: 120°
UL,FCC TUVGS,CE,PSE,RoHS approved,with 3-year warranty
Installation: Suspending,Ceiling Recessed and Mounted types are available.
Other size: 200X200x14mm;300X300x14mm;600X600x14mm;300X1200x14mm;600x1200x14mm;
150X600x14mm;150X1200x14m;200X600x14m;200X1200x14m all are available(dimmable type are available as well)
Certificate: UL,FCC TUVGS,CE,PSE,RoHS approved,with 3-year warranty

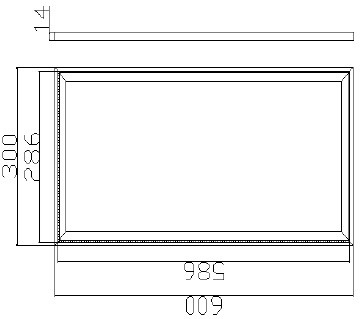

Dimension Drawing:



                                                  Note1. The above unit is mm.2. The tolerance of each dimension is ±1mm.

Parameter:

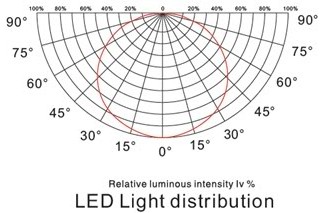

Distribution Curve:

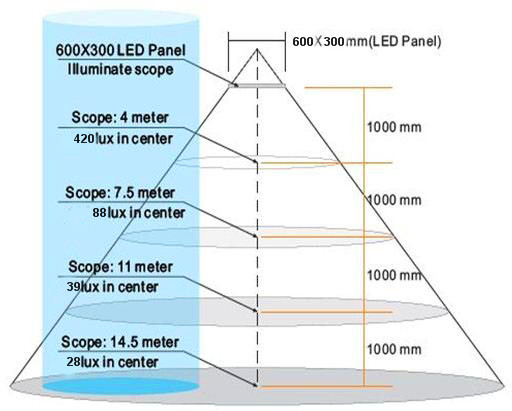

Illumination Intensity Chart:

LED decay parameter:

Installation:
This product is simple and convenient installation.The client may be more reasonable application of the product to fit the scenic spot,follow are three types installation ways for opition.

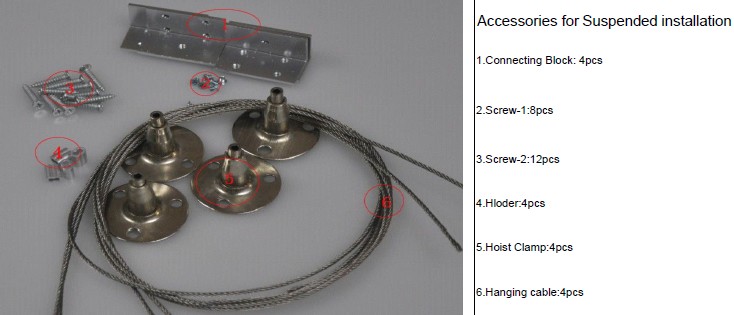

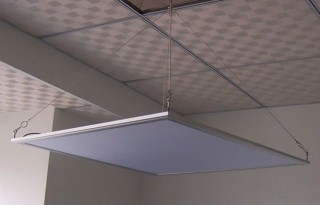

A:Suspending Installation

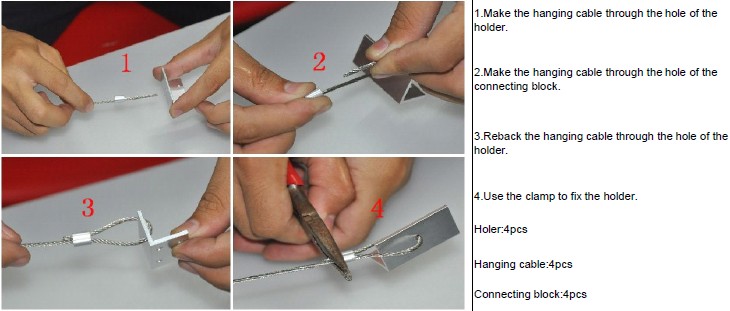

Step1:

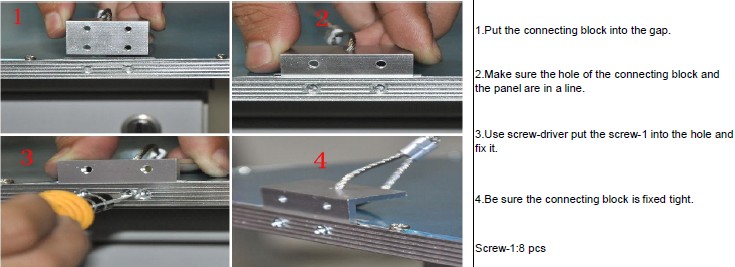

Step2:

Step3:

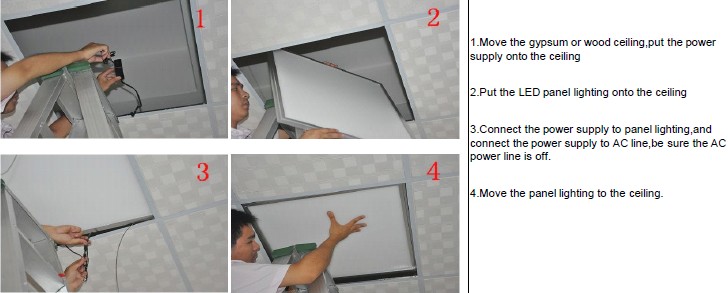

B:Ceiling Recessed Installation

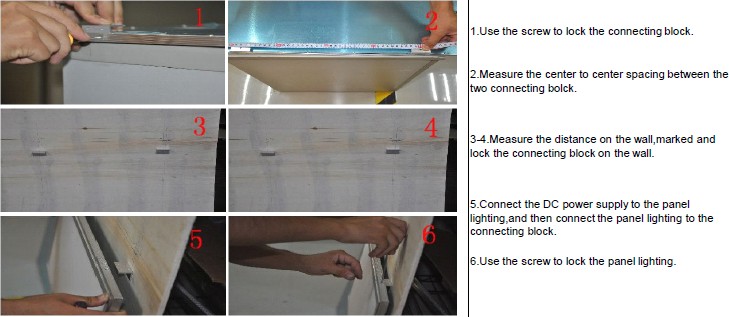

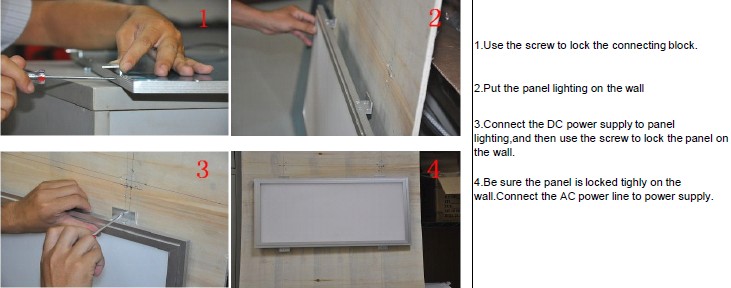

C:Mounted Installation

Solution1:
lution Solution1:

Cautions:
1. This product should be installed by trained electricians.
2. Pleas make sure the transformer and the panel light disconnect with the AC power line.
3. When connecting the wiring cables to the luminaries, the brown (or black) wire is the Live wire, connect it with the terminal marked "L". The blue wire is Naughty wire, connect it with the terminal marked "N".
4. Use only the LED driver included, and do not connect the LED panel light to other loads.
5. Please don’t disassemble the LED panel light or the power supply or the drive system to avoid any danger to user or problems to the LED panel light.
6. If there is unauthorized disassembly and maintenance, then the LED panel light and the transformer and the drive system will be out of warranty.

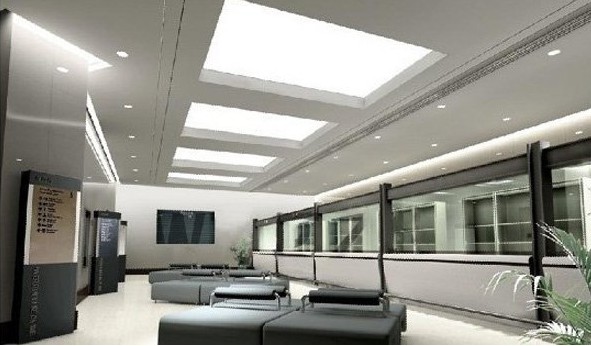

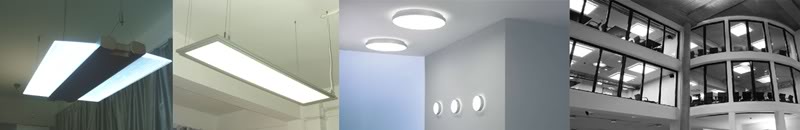

Application:
1.Commercial  lighting, environmentally friendly lighting, warehouse , supermarket  and home illumination. 2.IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel  and other public places. 3.Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range.
