Three-in-one chip to emit vivid RGB color
Up to more than 10 kinds of color-changing modes (work with specific controller)
Low voltage for safe application
Low power consumption, low heat generation, no heat damage.
Easy installation onto flat surface with 3M self-adhesive tape
Easy to assemble and maintain, high flexible and durable to be bent into any shape, cuttable at every 3 LEDs
24V DC can be chosen and the unit price is the same with 12V DC
Features:
5050 SMD 13.5-19.5LM/LED High Quality Flexible LED Strips

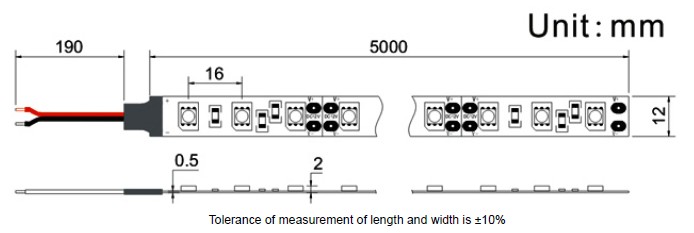

1) 60leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)
And connect again by our accessories.
Input voltage: DC12v/0.4-0.7A/14.4W/M, DC24V/0.2-0.5A/14.4W/M
2) Viewing angle: 120°
3) Available PCB color: yellow; white; black(Special)
Product Information: Item No CCT Λd(nm)/Tc(K) Flux(±5%) LED Qty Watt /M Size(MM) RL-W_F121200-60T3 White 5000-6500K 5390lm 300pcs/reel 14.4W/M 1000*10/12 RL-WW_F121200-60T3 Warm White 2700-3500K 4054.6lm RL-B_F121200-60T3 Blue 465-470nm 1102lm RL-G_F121200-60T3 Green 520-525nm 3572lm RL-Y_F121200-60T3 Yellow 585-590nm 1478lm RL-R_F121200-60T3 Red 620-625nm 1361lm
1. The above data is under the test condition of Ta =25 degree, DC 12V, 60Led/Meter RH 85%
2. Tolerance of measurement of luminous intensity is ±10%
3. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
4. Specifications are subject to change without notice.
5. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

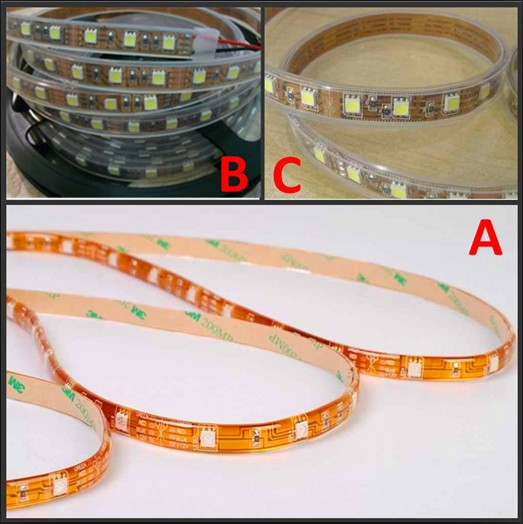

This Flexible Strips can be in waterproof:
A: Waterproof IP65(WF): glue dropped type
All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement
or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more
convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help
strip installation with our accessories

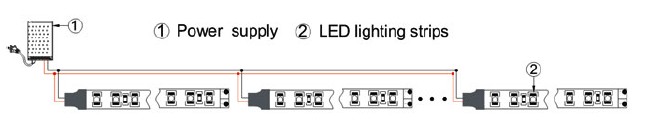

Power Supply:
How to connect waterproof strips:
To cut and seal at one end, please follow the steps: A1 A2 A3 B1 B2
To cut and install waterproof connector at one end, please follow the steps: A1 A2 A3 C1 C2 C3 C4 C5
A1: Cut the light strip at the icon ” scissors” or by every 3 LED's.
A2: Screw to open the glue cap.
A3: Use the thrust (another side of glue cap) to puncture the surface.
B1: Inject the silicon gel into the end cap without holes.
B2: Push the strip into the cap and let gel dry for 1 hour.
C1: Put the connector wire through the end cap holes.
C2: Solder the wire onto the PCB.
C3: after solder the two wires, push the strip into the end cap with wires carefully.
C4: Inject the silicon glue at the end of strip and cap.
C5: Make sure end cap and strip are connected well and let gel dry for 1 hour.
