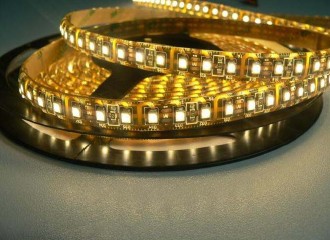

Rayou’s Flexible LED strip operates at 12V,can be DC24V as well,600 surface mounted 3528 LED Chips, that are individually picked by BIN Number in order to have a very steady color rendering in a big production line.Its White colored printed circuit board,which gives it a better finishing look compared to traditional LED Strips.

Features:

3528 SMD 4.5-6.5lm/LED High Quality Flexible LED Strips
1)120leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)
And connect again by our accessories.
Input voltage: DC12V/0.7-0.9A/8.9-9.5W/M,DC24V/0.4-0.7A/8.9-9.5W/M
2) Viewing angle: 120°
3) Available PCB color: yellow; white; black(Special)

Product Information:
Item No
CCT
Λd(nm)/Tc(K)
IV(±5%)
LED Qty
Watt / ft.
Size(MM)
RL-W_F12800-120T2
White
5000-6500K
2000MCD
600pcs/reel
1.44W/120mA
1000*10
RL-WW_F12800-120T2
Warm white
2700-3500K
1920MCD
RL-B_F12800-120T2
Blue
465-470nm
389.8MCD
RL-G_F12800-120T2
Green
520-525nm
1490MCD
RL-Y_F12800-120T2
Yellow
585-590nm
396MCD
RL-R_F12800-120T2
Red
620-625nm
358MCD










1.        The above data is under the test condition of Ta =25 degree, DC 12V, 60Led/Meter RH 85%

2.        Tolerance of measurement of luminous intensity is ±10%

3.        The dominant wavelength  λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

4.        Specifications are subject to change without notice.

5.        θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

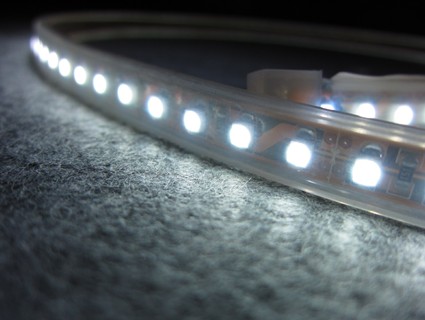

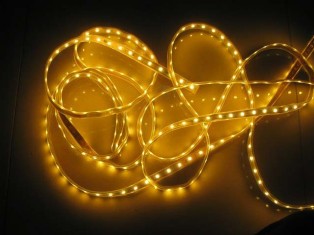

This Flexible Strips can be in waterproof:

A: Waterproof IP65(WF): glue dropped type
B: Waterproof IP67(TF): silicon tube type
C: Waterproof IP68(KF): PVC sleeve type

                       (A)                                                    (B)                                                         (C)

All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help strip installation with our accessories

Dimension Drawing:


Accessories:

Power Supply:


How to connect waterproof strips:




To cut and seal at one end, please follow the steps: A1 A2 A3 B1 B2

To cut and install waterproof connector at one end, please follow the steps: A1 A2 A3 C1 C2 C3 C4 C5



A1: Cut the light strip at the icon ” scissors” or by every 3 LED's.

A2: Screw to open the glue cap.

A3: Use the thrust (another side of glue cap) to puncture the surface.



B1: Inject the silicon gel into the end cap without holes.

B2: Push the strip into the cap and let gel dry for 1 hour.





C1: Put the connector wire through the end cap holes.

C2: Solder the wire onto the PCB.

C3: after solder the two wires, push the strip into the end cap with wires carefully.

C4: Inject the silicon glue at the end of strip and cap.

C5: Make sure end cap and strip are connected well and let gel dry for 1 hour.


Package:





Installation Precautions:

1). Connect the lines correctly as shown in the diagram above. It is best to connect 10 meters
2). the working parameters can not over the rate in the limitation in the Absolute Maxing Rating form.
3). the surface upon which the strips are to be installed must be flat and clean, otherwise the LED strip will not properly   adhere.
4). Always protect against electrostatic discharge during installation and use of the strip. Never allow a knife or other sharp objects to touch the product

Application:

Cove lighting,under cabinet lighting,architectural lighting,automatic lighting,RV lighting,backlights,edging lighting.etc.
