It is made by cold white &warm white LEDs alternately,so you can use our CCT remote controller to adjust the color temperature to satisfy customer’s different requirements , providing the capacity for really warm white to very cold white all in one single led strip.

All VANLE products can work with our Special Dimmer Controller to achieve more effects.

Features:



5050 Bi-color High Quality SMD Flexible LED Strips 13.5-19.5LM/LED



1) 60leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)

And connect again by our accessories.

Input voltage: DC12V/0.4-0.7A/14.4W/M, DC24V/0.2-0.5A/14.4W/M

2) Viewing angle: 120°

3) Available PCB color: yellow; white

Product Information:

Item No

CCT

Λd(nm)/Tc(K)

Flux(±5%)

LED Qty

Watt/M

Size(MM)

RL-PW+WW_F121200-60T3

Pure White

5000-6500K

2972.6lm

300pcs/reel

14.4W/M

1000*10

Warm white

2700-3500K

2225.2lm







1. The above data is under the test condition of Ta =25 degree, DC 12V, 60Led/Meter RH 85%
2. Tolerance of measurement of luminous intensity is ±10%
3. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines
     the color of the device.
4. Specifications are subject to change without notice.
5. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

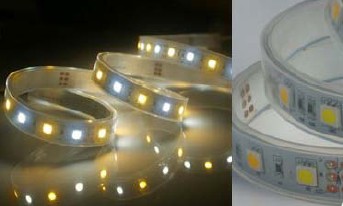

This Flexible Strips can be in waterproof:
A: Waterproof IP65(WF): glue dropped type
B: Waterproof IP67(TF): silicon tube type
C: Waterproof IP68(KF): PVC sleeve type


                           (A)                                                      (B)                                               (C)

All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help strip installation with our accessories

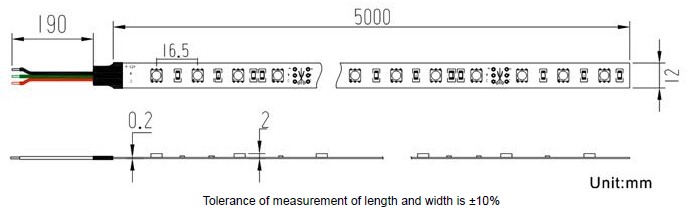

Dimension Drawing:

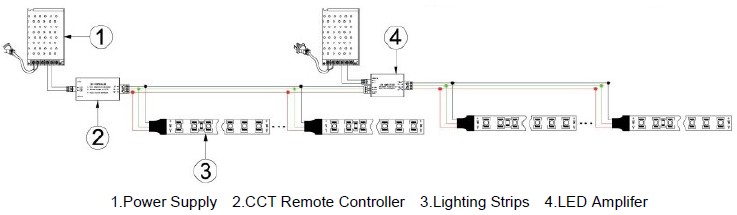

 Connect Drawing:

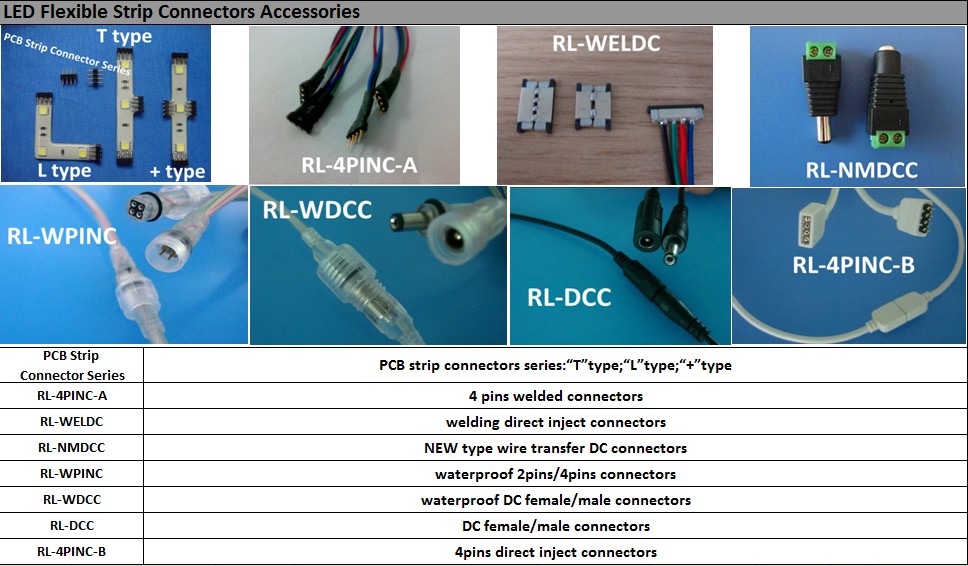

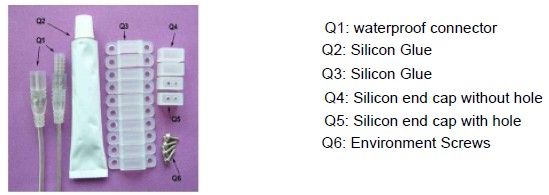

Accessories:

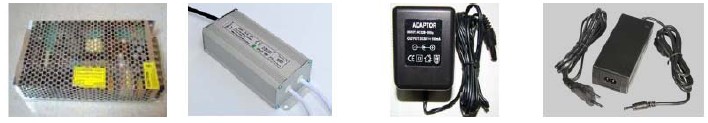

Power Supply:

Specific Remote Controller(CCT):

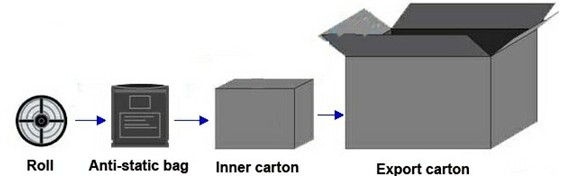

Package:



Installation Precautions:

1). Connect the lines correctly as shown in the diagram above. It is best to connect 10 meters

2). the working parameters can not over the rate in the limitation in the Absolute Maxing Rating form.

3). the surface upon which the strips are to be installed must be flat and clean, otherwise the LED strip will not properly
     adhere.

4). Always protect against electrostatic discharge during installation and use of the strip. Never allow a knife or other sharp
     objects to touch the product.

Application:

Cove lighting,under cabinet lighting,architectural lighting,automatic lighting,RV lighting,backlights,edging lighting.etc.
