Ultra Slim Round LED Ceiling Panel Light 30W
1)Wattage:30W
2)Voltage:AC85~265V
3) High Colour Rendering, original Lumenmax 3022SMD
4)Warranty:2 years,
easy installation, energy saving
5) No electric wave.RGB,Remote-control dimming are available

Features:
Energy-efficient, environment-friendly, save up to 50%, high intensity

Maintenance free,easy installation

3years lifespan

Special different view angle,mixing lighting design

Instant start,no flickering,no humming

New inner high efficiency(95%) with heat protection system, the

constant current driver can work under unstable voltage

Special circuit design,each LED can work separateky,thus it can avoid

The influnence that a broken LED causes.

No electric wave.Remote-control dimming available.

No such hazard that mercury or lead enters the enviorment.

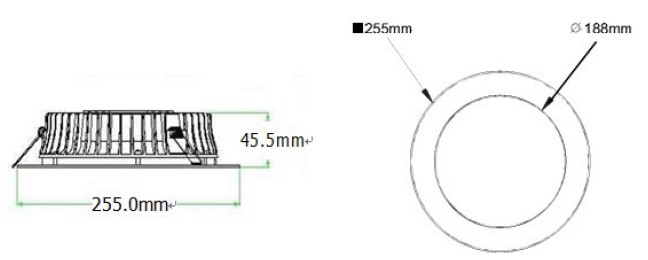

Dimension Drawing:


Parameter:
Input Voltage:85-265V AC
Power Consumption:30W

LED Type:SMD3022  154PCS

Luminous Flux:2310lm(Pure White)

Color Temperature:2700-3300K 4000-5000K 5700-7000K

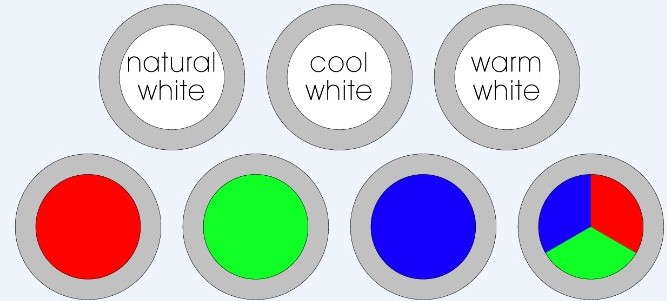

Color: Red/Blue/White/Yellow/Green

Lifespan: >5000hrs

Operating Temperature:-20 to+40

Storage Temperature: -20 to+60

Humidity Operating:10-80%

Humidity Storage:10-80%

Certifications: CE RoHS

Weight:1.40KG

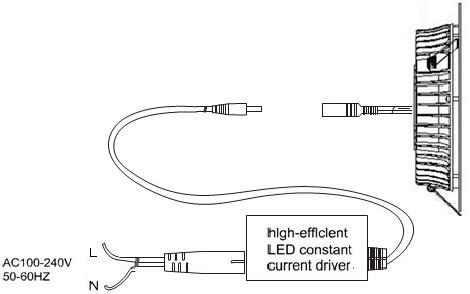

Electrical Connection:

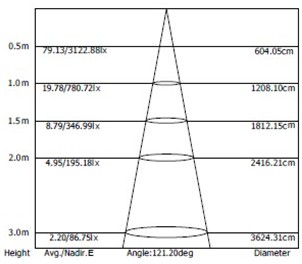

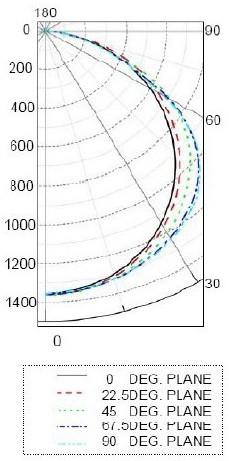

Distribution Graph:

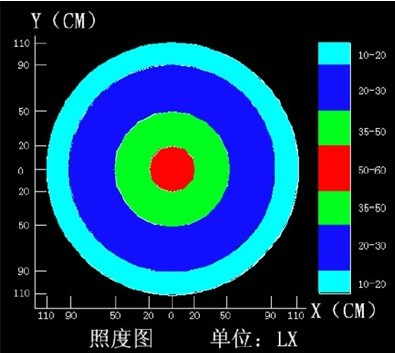

Illumination Indensity Chart:

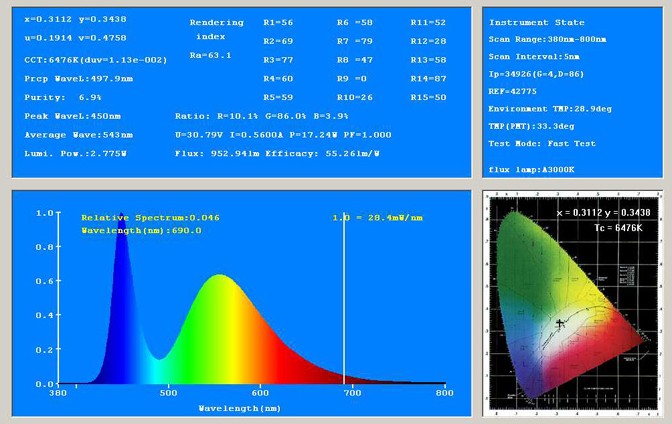

Spectrophone Testing:

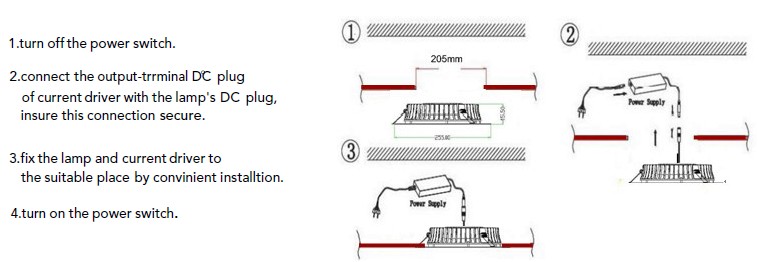

Installation Instruction:

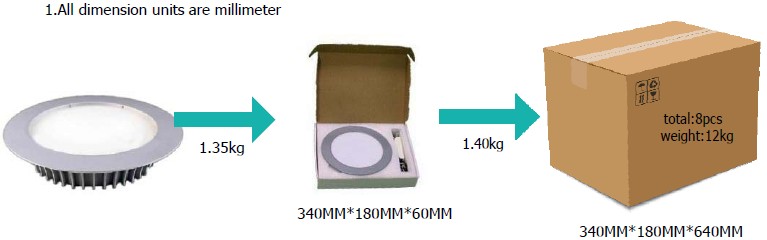

Package:

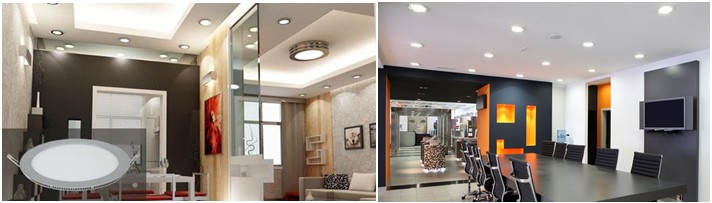

Application:
Hotels/conference/meeting rooms;factories & offices;commercial purposes;residential/institutionbuildings;schools,colleges,
universities,hospitals;places where energy saving and high color rendering,Index lighting are needed.
