Feature:
1. High shock & vibration resistant.
2. Energy Savings of as Much as 90% vs. Traditional Lighting
3. No UV or RF interference, NO Mercury
4. Instant start, no noise, no flickering.
5. Suitable for both indoor and outdoor use.

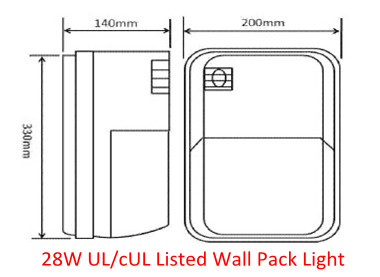

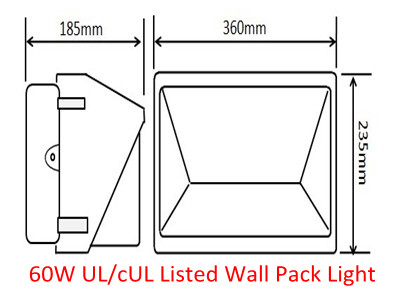

Dimension Drawing:

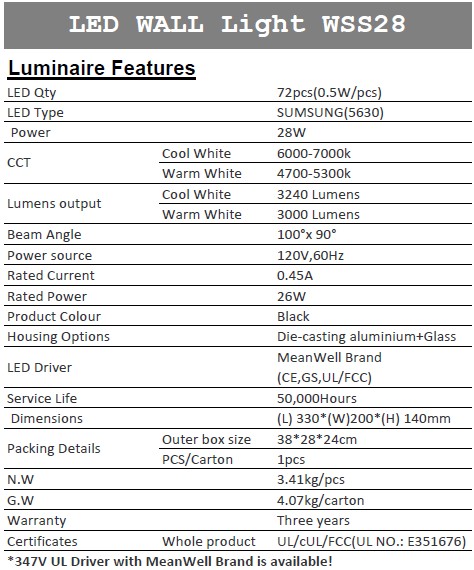

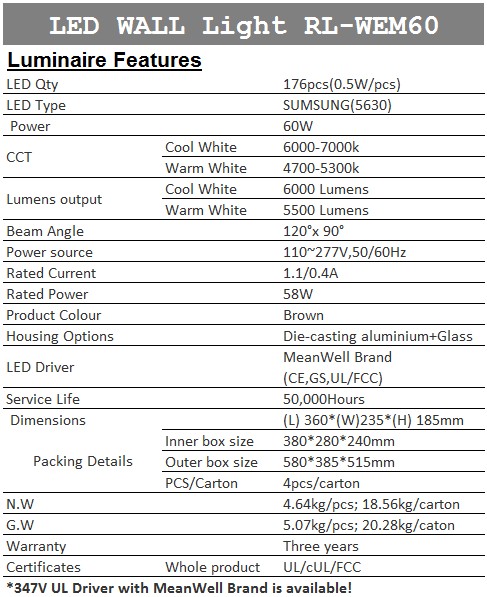

Parameter:

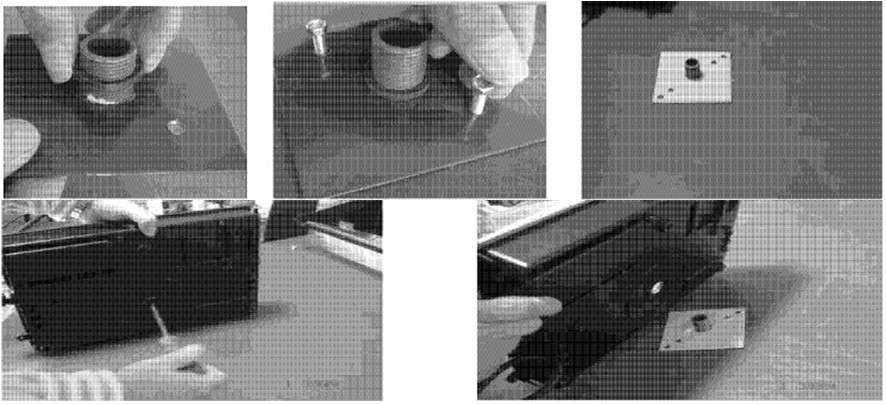

Installation Instruction:


1.Please check the box to see if there is damage or not before openning the box. Please check the attached technical documents such as brochures, factory certificate and check to see if there is damage of lamps.

2.The lamp will be directly fixed on the ceiling as shown above with the mounting hardware during installation. For wall mount only.

3. The environment temperature can not be over 38 degrees and below -30 degrees.

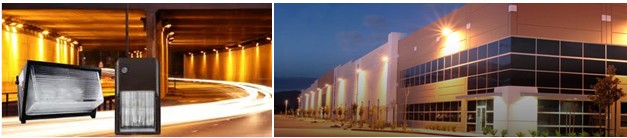

Application:
Exterior or interior LED lighting for Hotels, Garages, Commercial Buildings, Public areas, Schools and Hospitals
