Home > Product > LED Bulb Light > LED Candle Bulb > Samsung5630SMD 5W Dimmable LED Candle Bulb

Samsung 5630SMD 5W Dimmable LED Candle Bulb

Original Korea Samsung 5630SMD,high lumen

540~580lm,5W dimmable and non-dimmable are avaialble

CE RoHS certificated,2years warranty

New design,good heat dissipation

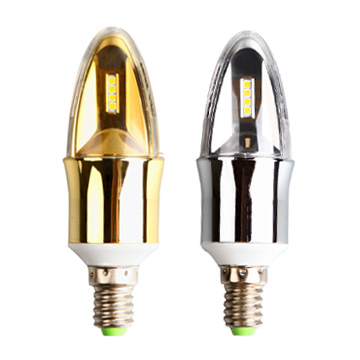

Golden and silver housing are available



Features:
There is a new design E14 led candle bulb,we named it " Magnolia ". It is our 2012 new recommended product,it is a market  24k gold- plated processing technology,The gold body is shinning as she use poisioning luxury led candle light. It is break though in led light. The gold section design make crown full of beauty and also has excellent heat dissipation.
The multi reflector design make the beam angle 300 degree cooperate with the chandelier ceiling light,looks extreme luxury. It is 5W reach 450lm.85% energy saving. Its excellent workman ship compare favorably with philips and other brands.

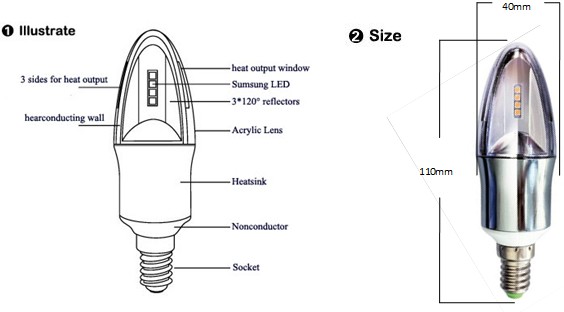

Dimension Drawing:

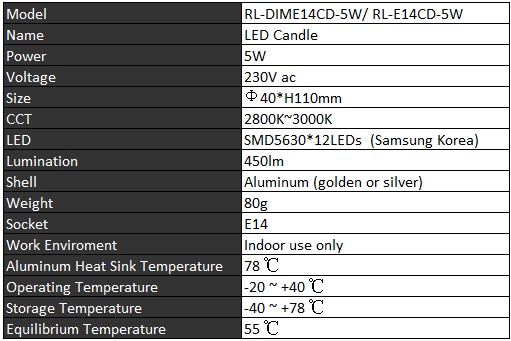

Specification:

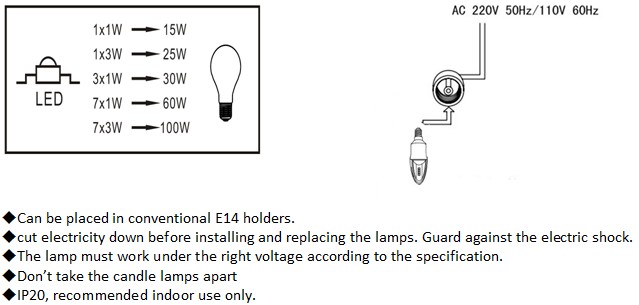

Replace & Installation:

Caution:
1.The lamp does not shine after installation.

l       Check if it is working on the right voltage.

l       Check if the electrode of the holder has good connection with the lamp.

l       Change another lamp holder to test it, and then confirm whether this lamp is failure or not.

l       Gently shake the LED lamp and listen if there is abnormal sound, to determine if led lamp is damaged during transport. If you find above problems, please contact dealer or manufacturer.



2. LED lamp is blinking .



l       Bad connection on electrode, screw/insert once again or adjust the light-base’s space to ensure good contact.

l       Input voltages are wrong or unsteady, please confirm that voltage used under right scope,

l       Components damaged by crash during transport, please contact dealer or manufacturer.

3.Parameters of actual product do not match specification sheet.



l       Please check the testing instrument procedure.

l       Different test instruments between the buyer and the manufacturer will lead to it.

l       Some parameters of its own have tolerance, such as illumination, power, temperature, etc. If the actual parameters tested have greater difference with specification sheet, please contact dealer or manufacturer.



4. Maintenance.

l       If need maintain, pls. use dry and soft cloth to clean it, wet cloth or organic solvents will damage the lamp and reduce its shell shine.

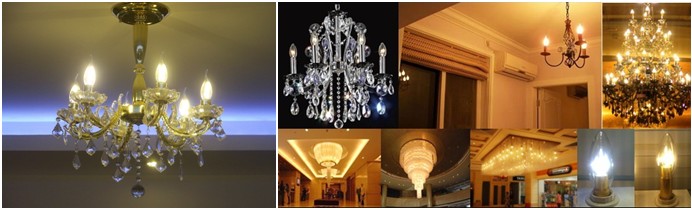

Application:
Shopping malls, store, supermarket; commercial lighting, hotel, restaurant, bank; office, meeting room, multifunction hall, exhibition hall; house, living room lighting, kitchen lighting, residential and institution Buildings.
