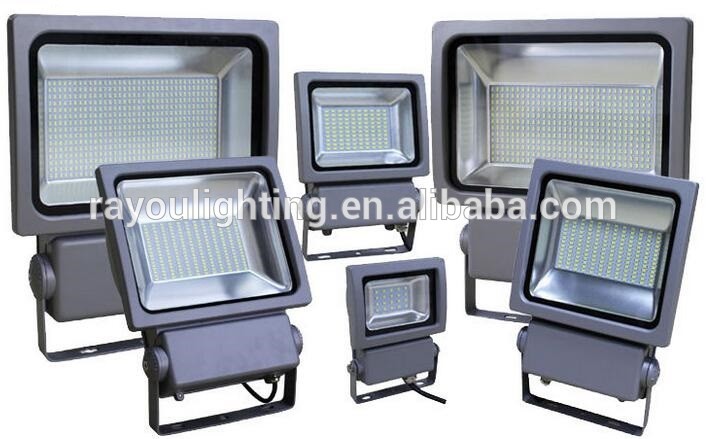

 SMD LED Flood Light 200W 250W 300W
1.20W 30W 50W 80W 100W 150W 200W 300W led flood light are available
2.Original high lumen Epistar 5730SMD flood light
3.>110lm/w,high efficiency
4.high quality,3years warranty
5.CE RoHS TUV SAAL UL listed driver
More led flood light outdoor details,pls contact me:
Skype: tyjeffery, Email:info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com

 LED flood light 100w features:
1.100W led flood light using imported super bright SMD5730 light source, High brightness, long life.
2. By using the most powerful and efficient flood light heatsink, the completed LED light can work up to 50000 hours, save up to 80% energy.
3. Massive fins for efficient cooling technology, rapidly transfer the heat of the LED chips to the massive fins.
4. Waterproof design with a new structure, Protection rate: IP65.
5. 4mm tempered glass panel to protect the lighting source, the transparent rate up to 93%.
6. led flood light housing is 1060 aluminium heatsink with "zipped-fins" technology, optimized airflow ductinside the housing.
7. the entire housing coated by electrophoretic pati, excellent corrosion resistance.
8. Wide angel for adjustment, with multiple adjustment points, the adjustment angel can be up to 180°.

led flood light 200w specification:

Model

RL-FLFSMD-200W

Input Voltage

AC85-265V 50/60Hz

Dimension

L380*W340*H145mm

Lighting Source

396pcs SMD5730

Power Consumption

200W

Color Temperature

WW(2800~3300K)

NW(4000~4500K)

CW(6000~6500K)

Luminosity

22000lm

≥23000lm

≥24000lm

CRI(Ra)

                                                                                >75

Beam Angle

120°

Work Temperature

-25~+45

Material

Alu+Glass

GW

7.06kg

NW

6.4kg

Cap ends

/

Lifespan (LED)

≥50,000hrs  (70% Lumen Maintenance)

IP Rating

IP65

Lumen Attenuation

<5% @ 5,000hrs

Packing Dimension

L420*W390*H170mm

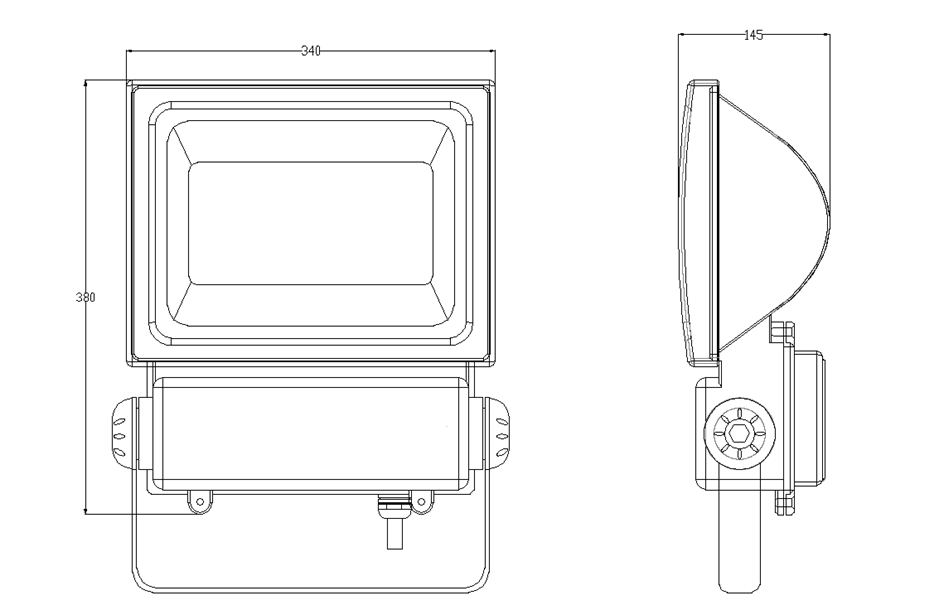

200 watt LED flood light Dimension:

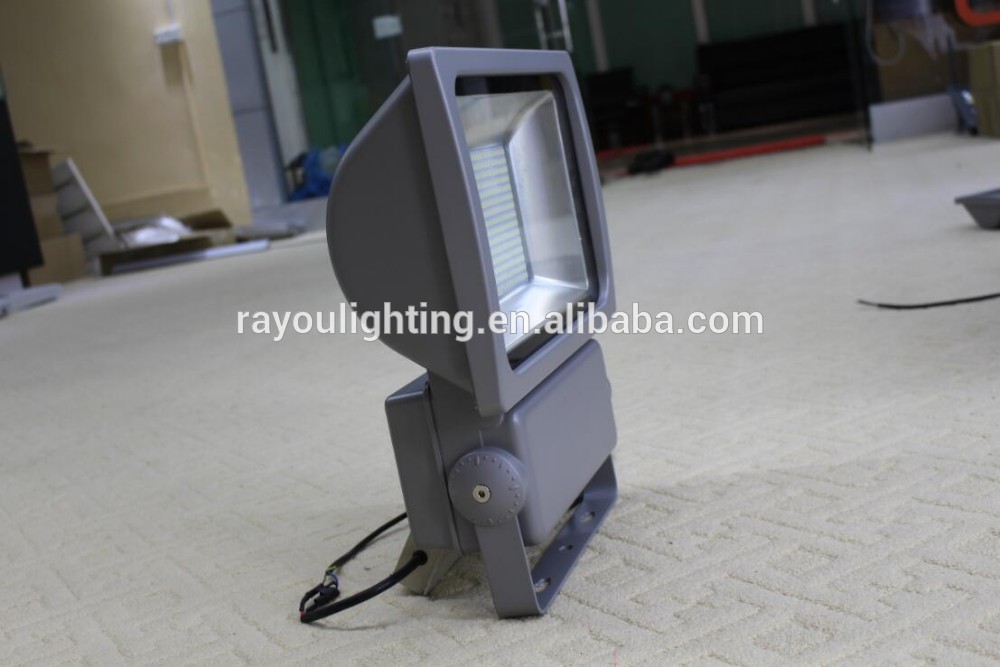

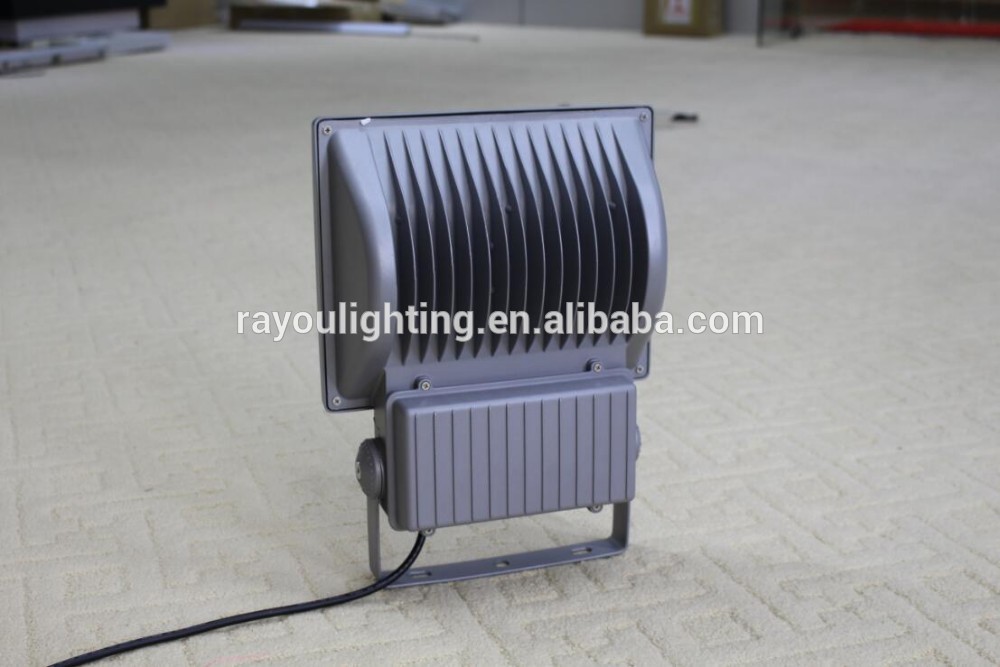

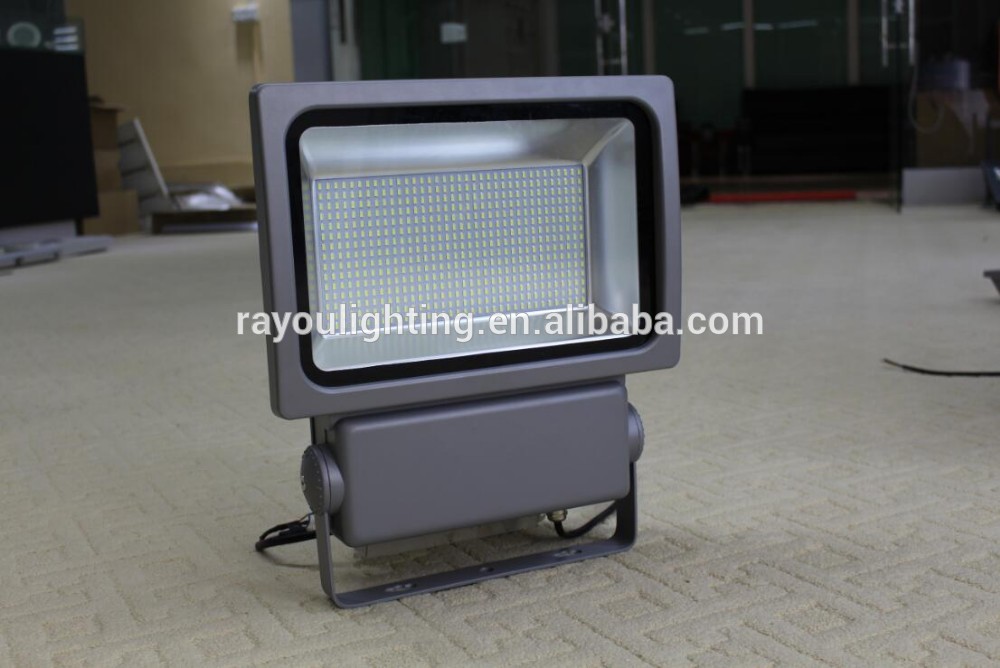

Outdoor led flood light more details view:

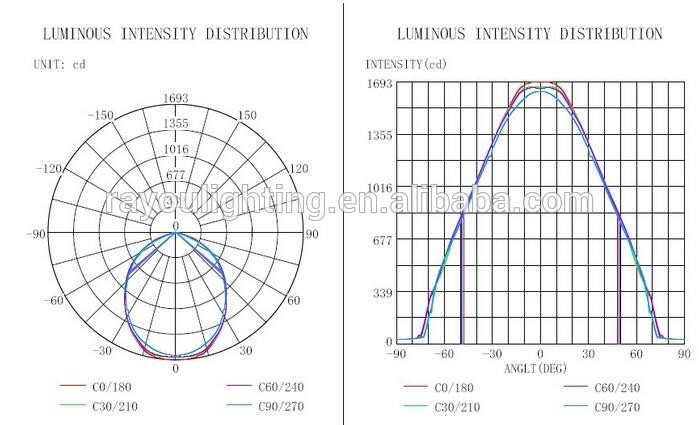

flood light led distribution curve and testing:

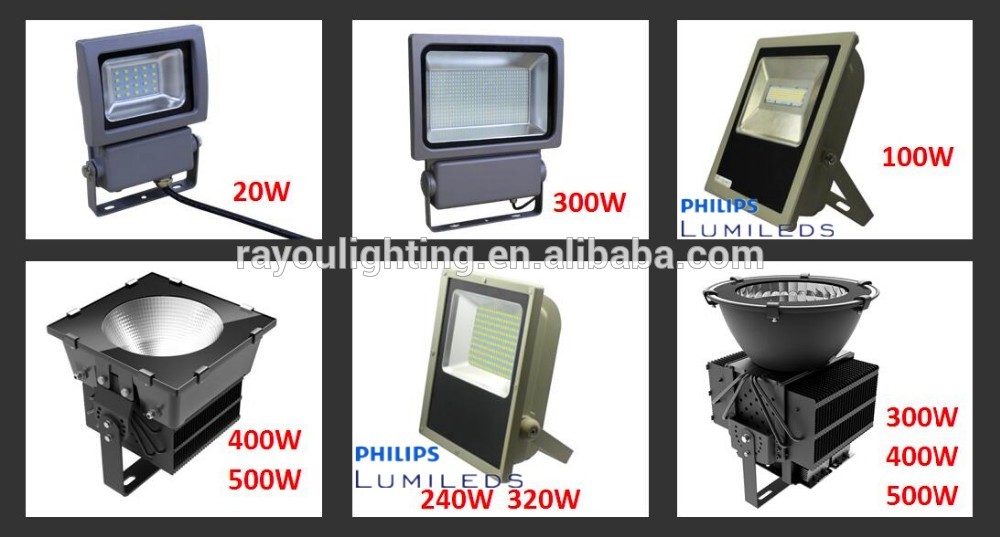

More related philips flood light to choose:

For more led flood light housings, please kindly write us by email directly to info@rayoulighting.com,thanks a lot!
Wanna discuss online?Follow us on skype ID: tyjefffery,your invitations are welcome always!

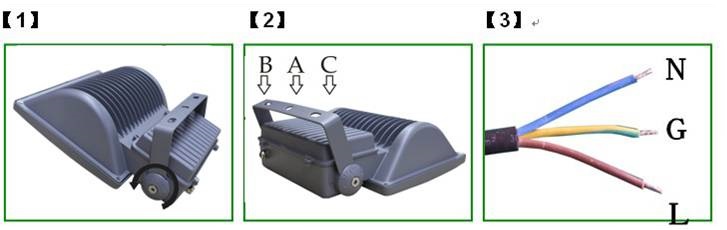

SMD led flood light installation:

As Picture No.1 showed, fix the lamp to mounting surface with 3 screws.
 As Picture No.2 showed, unscrew the retaining screw, take down the fitting.
 As Picture No.3 showed, Connect Live Wire/Null Wire/Ground Wire to electric cable properly and switch on.

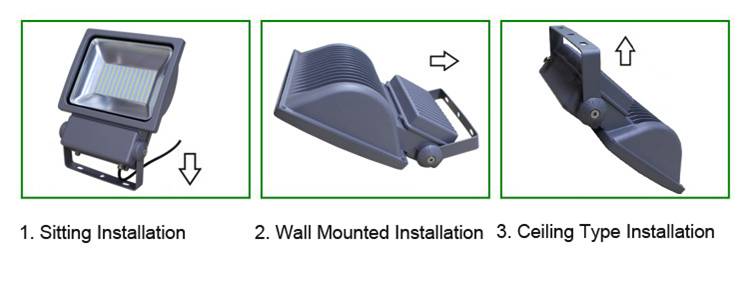

led flood light 150w mounting method:

Attention:
1.You'd better ask a professional electrician when installing and check the lamp carefully before installation.
2.Installation steps should be according to the installation instructions, tighten screws and link the wires exactly.
outdoor led flood light 100w packing:

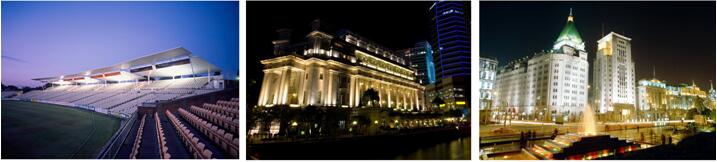

LED flood light 80 Watt application:
200 watt led flood light is widely used for
factory,gymnasis,lighting decoration,squares,airport,metro stations,shopping mall,free way intersection,billboard,landmark lighting.
