Rechargeable LED t8 Tube Emergency Light Series
1.Hot sale rechargeable LED T8 tube,3W~10W,20W,25W,30W
2.AC100~240V,CRI>80,high power 2835SMD,145°angle
3.CE &ROHS&FCC,2years warranty
4.Rotatable Ending Cap,3hrs duration time



Features:
Super bright LED tube with emergency function;
Input voltage : AC 100-240V;
Duration time: 3 hours;
Emergency mode power: 3W;
Operating temperature: -20~45;
IP42 protection rating;
36000 hours life span;
2 years warranty.
Function Description:
The emergency LED T8 tube light can switch automatically between normal lighting and emergency lighting. If there is no city electricity, the battery will be in operation. Two modes are available:
City electricity mode: When the city electricity is connected, the LED tube can work as normal lighting for daily life. The battery in external emergency driver is being charged automatically.
Emergency mode: If the city electricity fails, the battery will work and supply power to the LED tube for lighting. And The emergency lighting can last for 3 hours. Perfect protection is applied for the battery when voltage is low and short circuit happens.

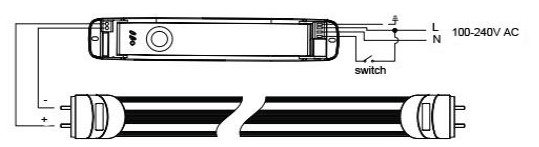

Wiring Diagram:

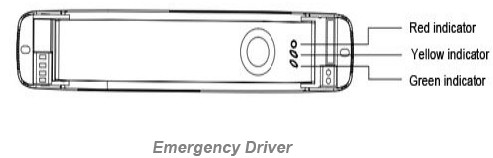

Emergency Driver and Indicating Wire:
Emergency Driver: Except for normal lighting, emergency LED T8 tube light has a rechargeable lithium battery in the external driver, which is used for emergency lighting. For showing operatingstate, there are three indicators on it.
Red indicator: On-----Charging
Off-----Charged
Yellow indicator: On-----System failure
Off-----Working
Green indicator: On-----Electricity supply
Off-----Electricity disconnected

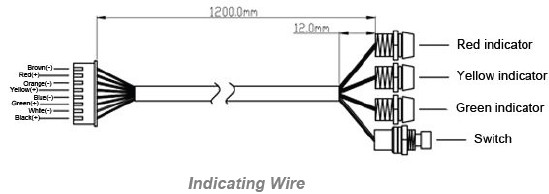

Indicating Wire: In order to inform the working state of emergency driver more conveniently, indicating wire is available,which is inserted on the end of driver. The switch is used for emergency function test, and the purpose of red, yellow and green indicators is the same as the three indicators on the driver.

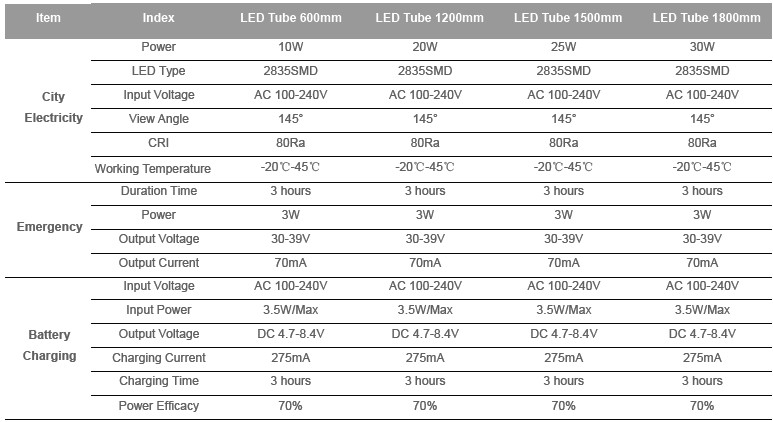

General Specification:

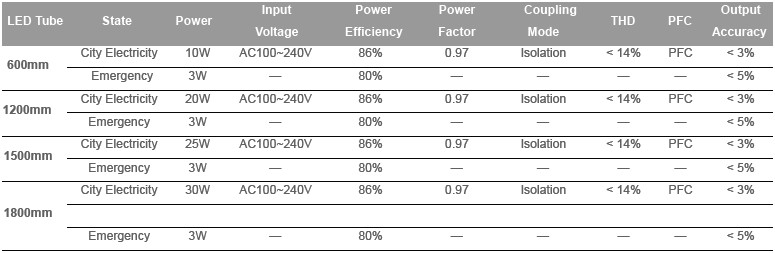

Electrical Parameter:

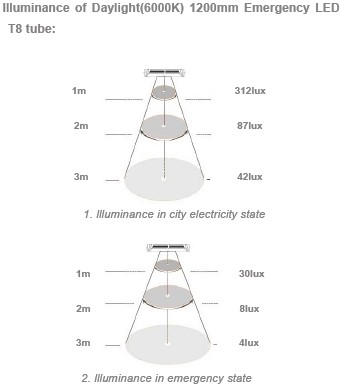

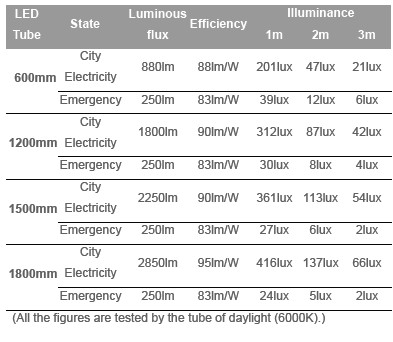

Optical Parameter:

Packing:

length Outer CTN size
(L*W*H)
Qty/Carton N.W. G.W.
600mm
LED Tube
645X265X218mm 20pcs 6.50kg 7.00kg
1200mm
LED Tube
1260X265X218mm 20pcs 11.30kg 12.60kg
1500mm
LED Tube
1570X265X218mm 20pcs 15.20kg 16.00kg
1800mm
LED Tube
1830X265X218mm 20pcs 19.20kg 20.40kg
Emergency
driver
580X260X210mm 40pcs 13.60kg 15.00kg

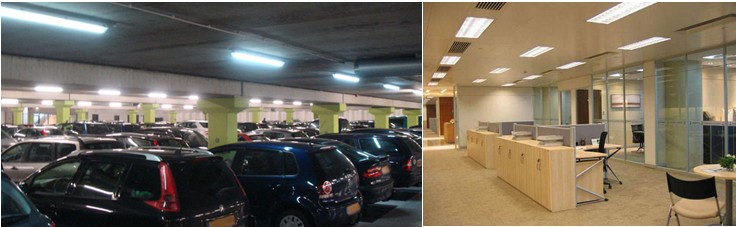

Application:
