Features:
1. Light source: 6.1W Zenigata power LED

2. Source life: More than 40,000 hours

3.Low heat, no UV or IR light radiation

4. Homogeneous and well defined illumination

5. Highest Luminous Efficacy: 60 lm/watt for warm white

6. Optimized heat sink with the right looks and sleek design

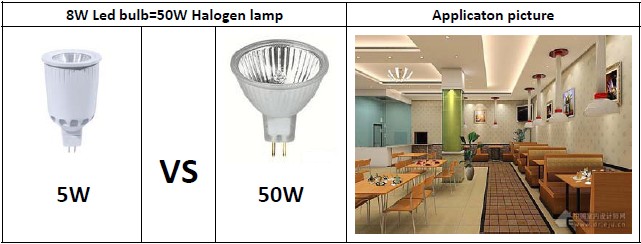

7. 8W can achieve directional light output equal to 50W halogen lamp yet consume 80% less power

8.Reverse polarity protection

9.Safety Standard: CE &RoHS

10.2 years limited warranty

11. Worldwide voltage input:12VAC/DC

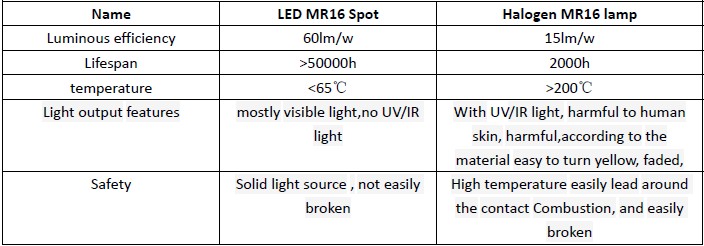

Characteristics:

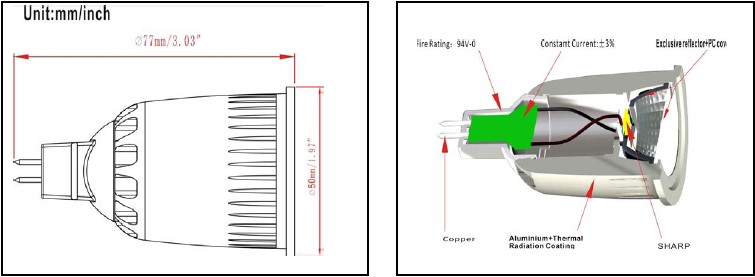

Dimensions:

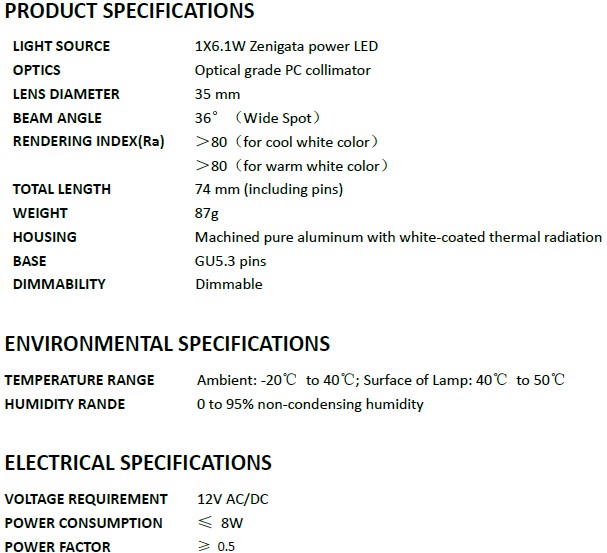

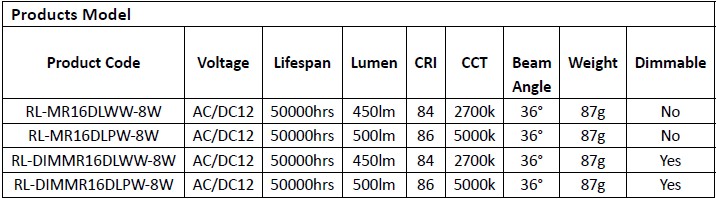

Technical Specifications:

Absolute Maximum Rating:

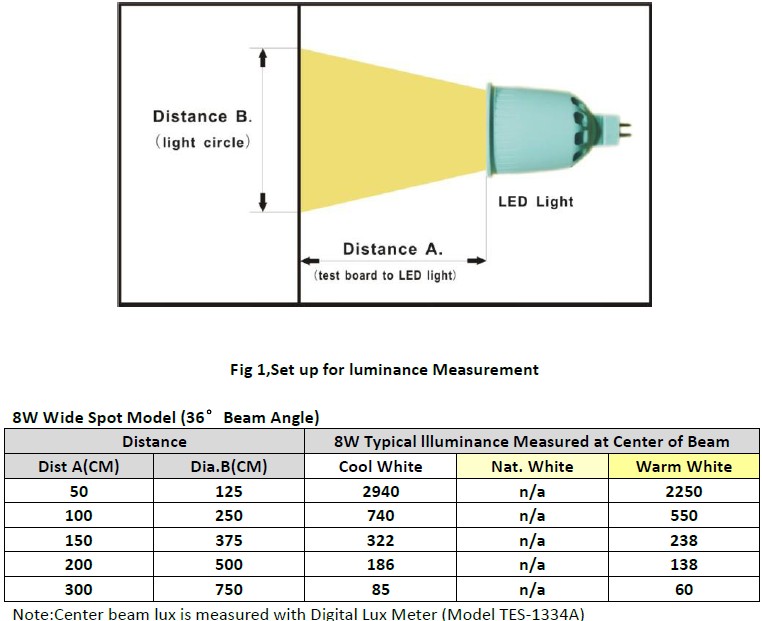

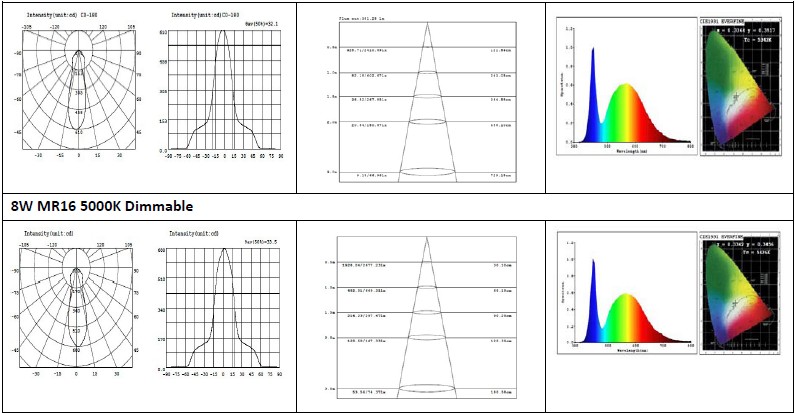

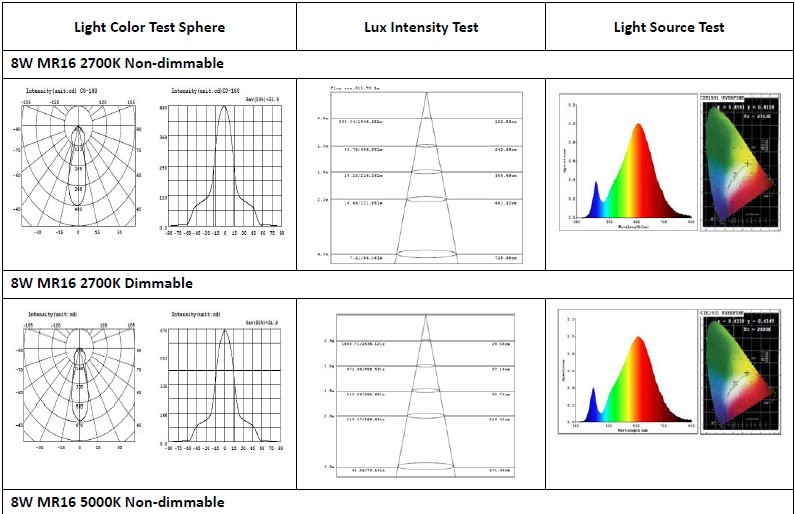

Illumination Characteristics (Ta=25℃):

Dimmable Connection:

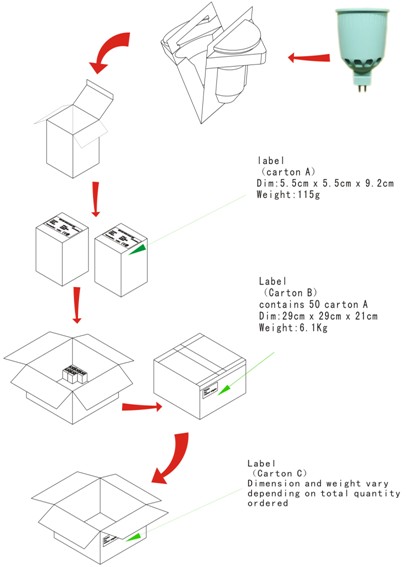

Package:

Application:

Landscape accent/Spot lighting, architectural lighting, display case accent ,artwork lighting

,mood lighting, amusement park accent.

This MR16 lamp can match some electronic transformers,such as Oaram,ect.

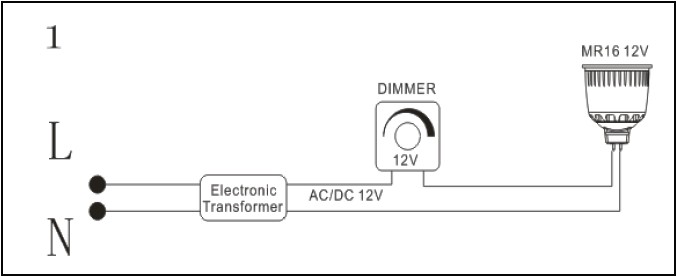

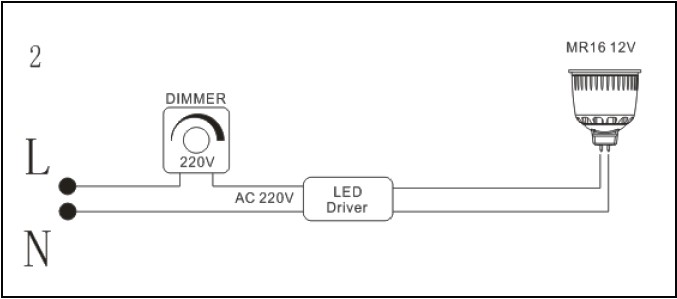

The following is a schematic diagram of the MR16 dimming:
