1.Energy saving ,saving 50% than the traditional lights at the same brightness.
2.Inner high efficiency(95%)heat protection system, with the latest high efficiency and constant currency driver, making the products can work under unstable voltage.
3.Professional circuit design, each LED can work separately, thus it can avoid the influence caused by a broken single LED.
4.Anti-electric wave,no RF interference.
Feature:
This T5 Tube series has three types cover: milkly ,transparent or frosted
Color temperature arrange:
Warm White : 3000-500K
Pure White: 4000-4500K
Cold White :6000-7000K
Standard Length :60cm ,90cm ,120cm,150cm
Main Technical Specifications:
1. LED type : 3528 SMD LED
2. Wide voltage Input ：AC 90-170 V;AC170-265V
3. Frequency : 50-60 Hz
4. PF （power factor ): 0.88-0.98
5. Power Efficiency :84%-92%

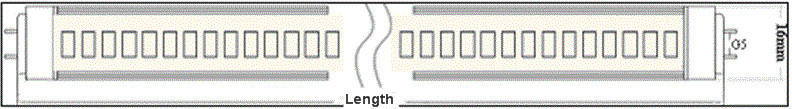

Dimension Drawing:
Physical Diagram&Characteristics:

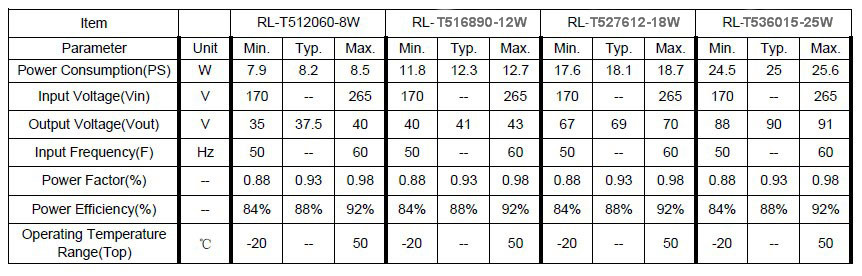

Electrical Characteristics:

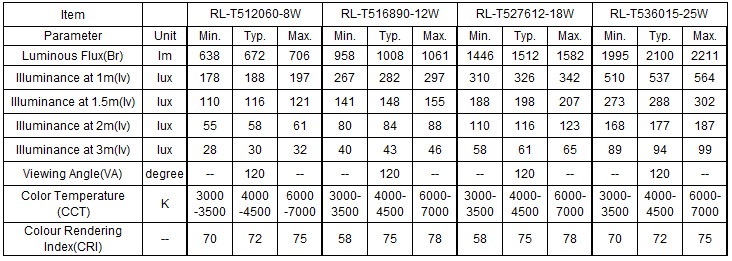

Photometry Characteristics:
All data is under 25℃, unless otherwise specified

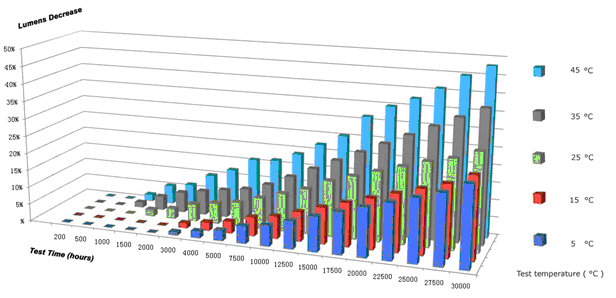

LED Tube Lumen Decrease:

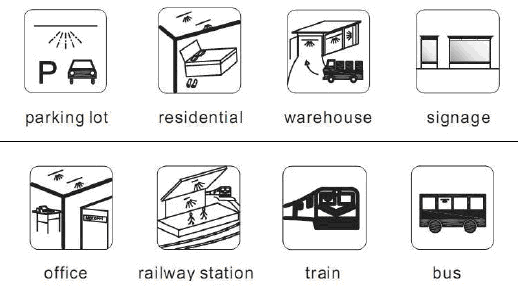

Application:

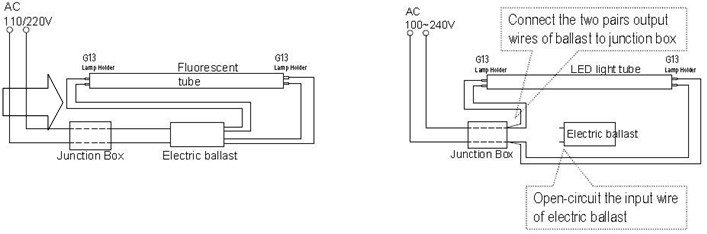

Installation Instruction:
Rayou Lighting’s LED T5 tube comes with its’ own fixture. Either end can be connected directly to the neutral and live lines.

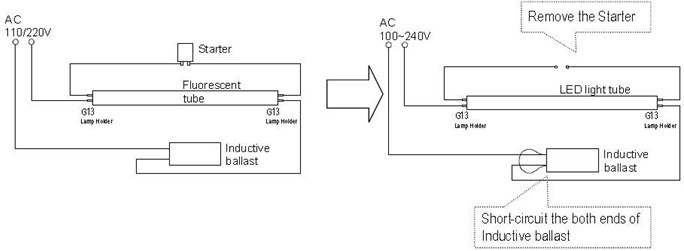

A):Lamp bracket of inductive ballast
B):Lamp bracket of electronic ballast

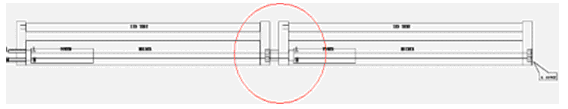

Rayou Lighting’s LED T5 can be series connected via connectors. The Max quantity is based on T5’s consumption and the working voltage.
Series connection quantity as follows:
Power Voltage 8W 12W 18W 25W 220V 130 pcs 86 pcs 58 pcs 42 pcs 110V 65 pcs 43 pcs 29 pcs 21 pcs

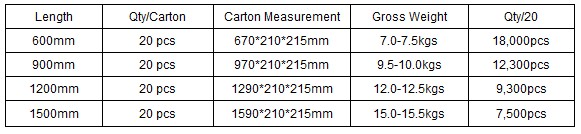

Packing:
