Features:
●Infrared wireless remote control
●Voice receiving sensitivity is adjustable
●3 set of output can realize more convenient for wiring
●Adopt the self-locking socket
●2 kinds of acoustic change mode optional
●Wide input voltage high power output
●16 kinds of static color optional
●Speed and brightness are adjustable
Technical Parameter:
Input voltage：DC12~24V
Output current：<3A/CH
Output gray level：RGB256 lever each
Remote control distance：5~10M
Working temperature：-20℃-70℃
controller size：L155×W75×H30mm
Remote size：L85×W52×H7mm

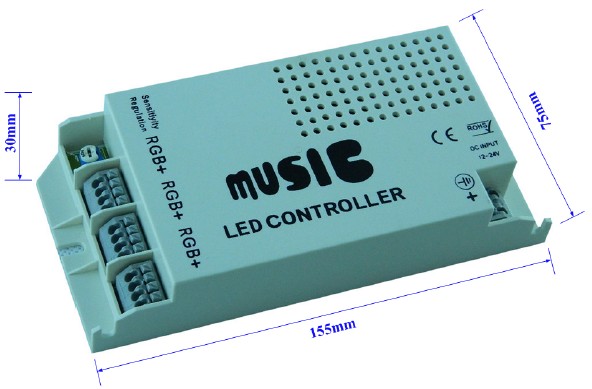

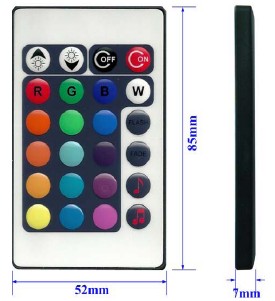

External Dimension:


Connection:

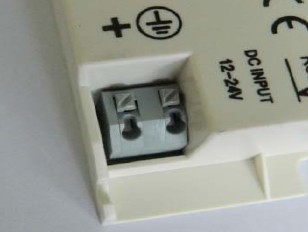

Power input interface:

(adopt the 2 hole plastic gray connection seat, with card holder functions )

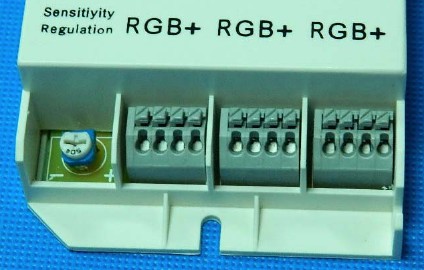

Load output interface:

(three parallel output, 4 hole plastic gray connection seat, with card holder function)
Uer Manual:
● Connect the load line first, and then connect the power cord; Before power on pls ensure
no short circuit between cables.
● This controller is controlled by Infrared remote control,user can remote controlled the
controller to turn ON/OFF,choose 16 kinds of static color,2 kinds for dynamic models and
two kinds of voice control mode,in static mode can adjust the brightness , in dynamic model
can adjust the changing speed.

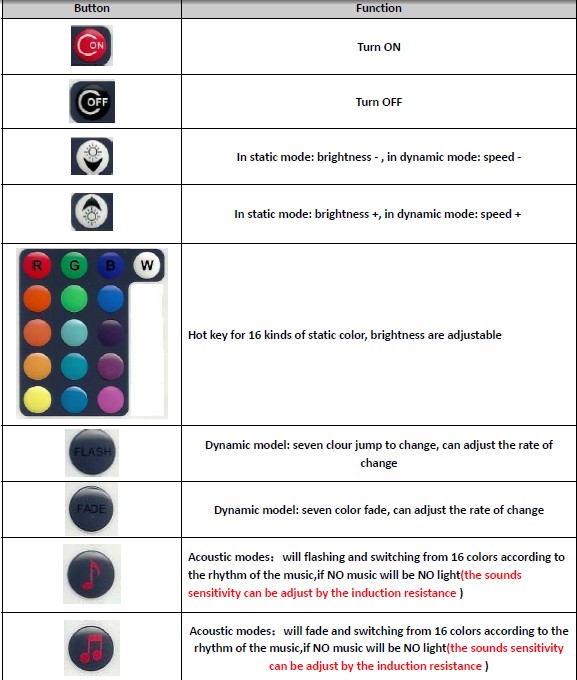

● The remote control button function are as the following:

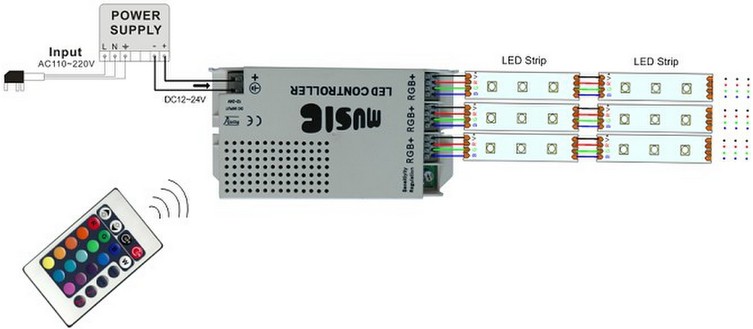

Typical Application:

Cautions:
1.This products Input voltage is DC12-24V,other input voltage are not allowed.
2.Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
3.Overload are prohibited.
