Home > Product > LED Tube Light > T8 Series > 180Degree Angle High Lumen LED T8 Tube

1. 8W/10W/15W/18W/20W led t8 tube,isolated power supply.
2. Replace fluorescent tube directly
3. high lumen,long lifespan,3years warranty
4. CE,FCC,RoHs approved,180degree beam angle

Feature:
1.Save energy up to 80% compare to normal fluorescent
2.No flash, no noise, less heat
3.No light delay when switch on/off
4.Low light decay, less than 3% after 1000 hours constant work
5.Dimmable type is available

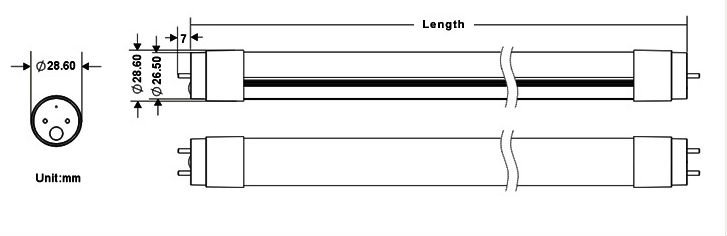

Dimension Drawing:

Inner Structure:

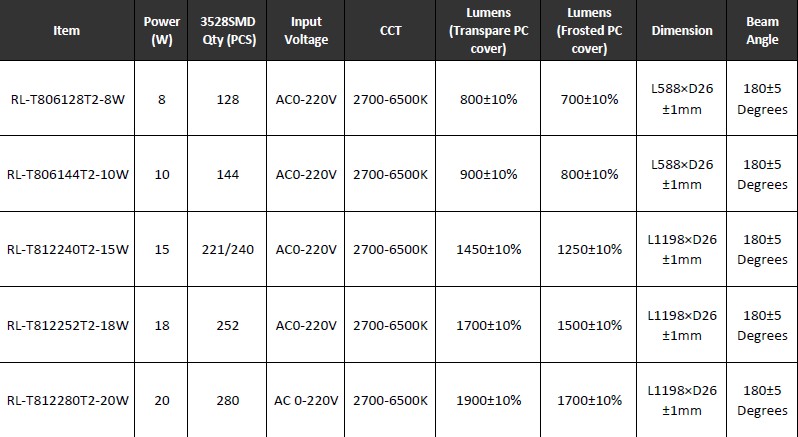

Parameter(Dimmable type):

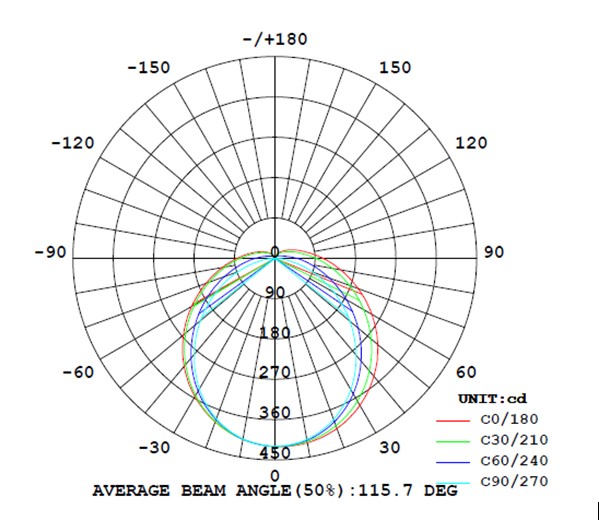

Luminous Indensity Distribution Diagram:

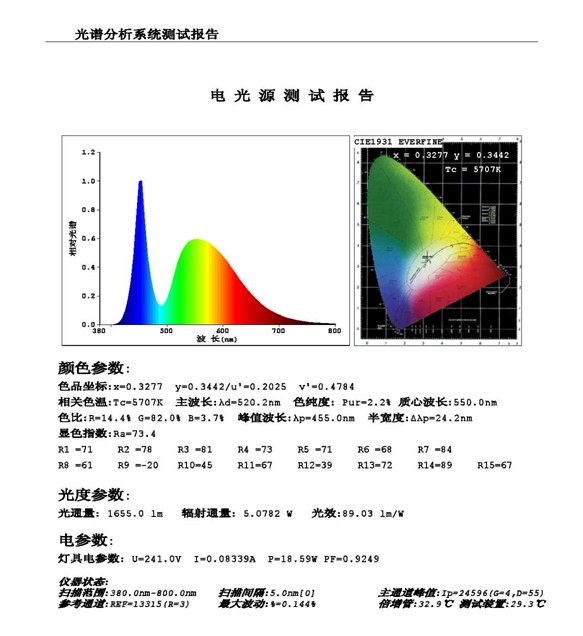

Integrating Sphere Testing:

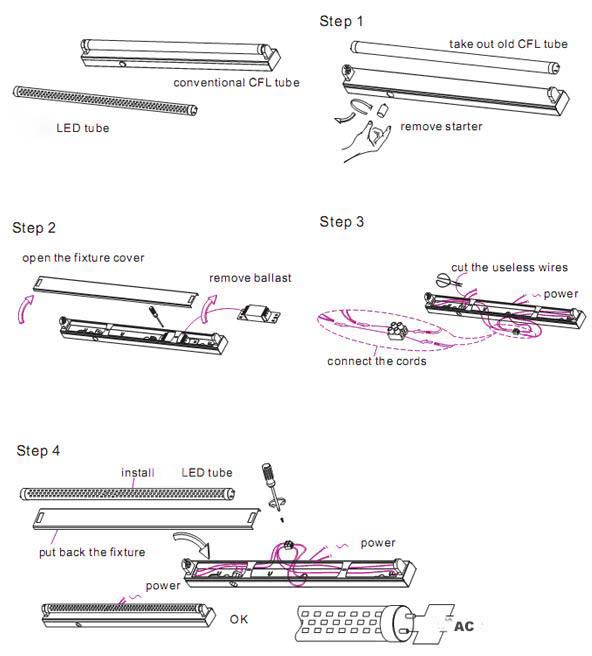

Installation:

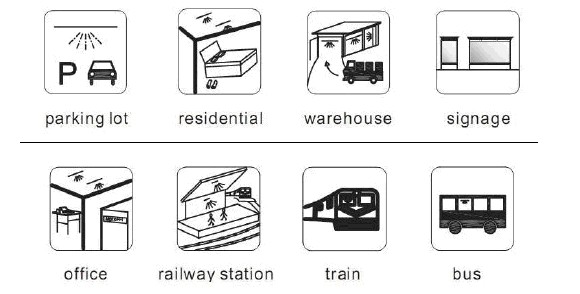

Application:

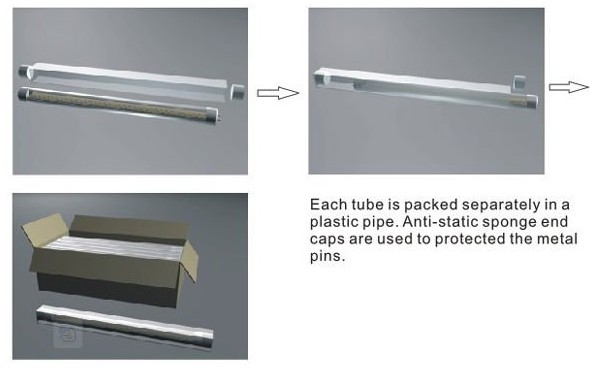

Package:

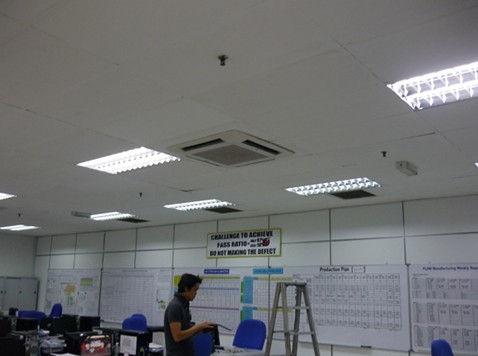

Project Photo for Reference:

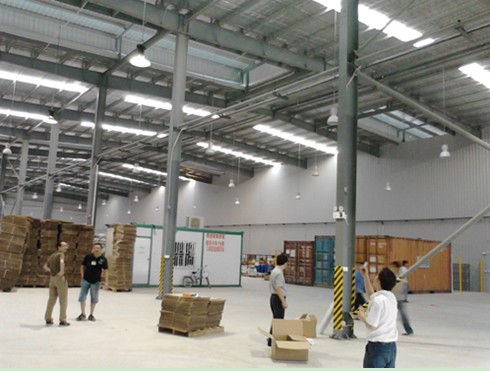

Huizhou Factory,8m installation height

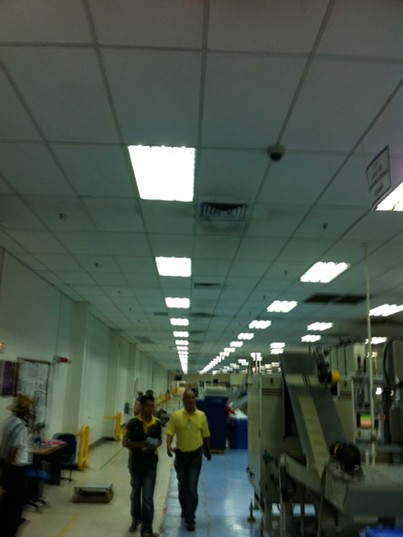

Panasonic factory in Malaysia,3.5M
HP factory and office in Malaysia,3.5M

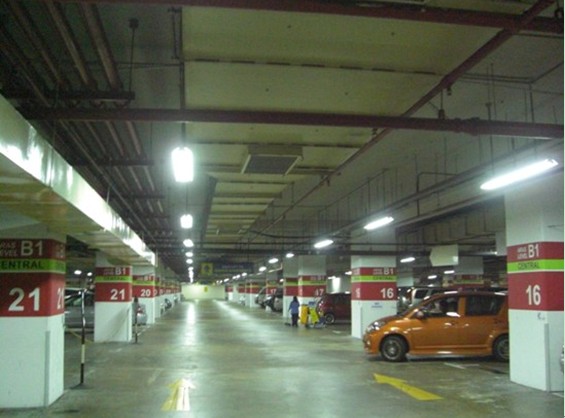

Parking Lot in Malaysia
